Description

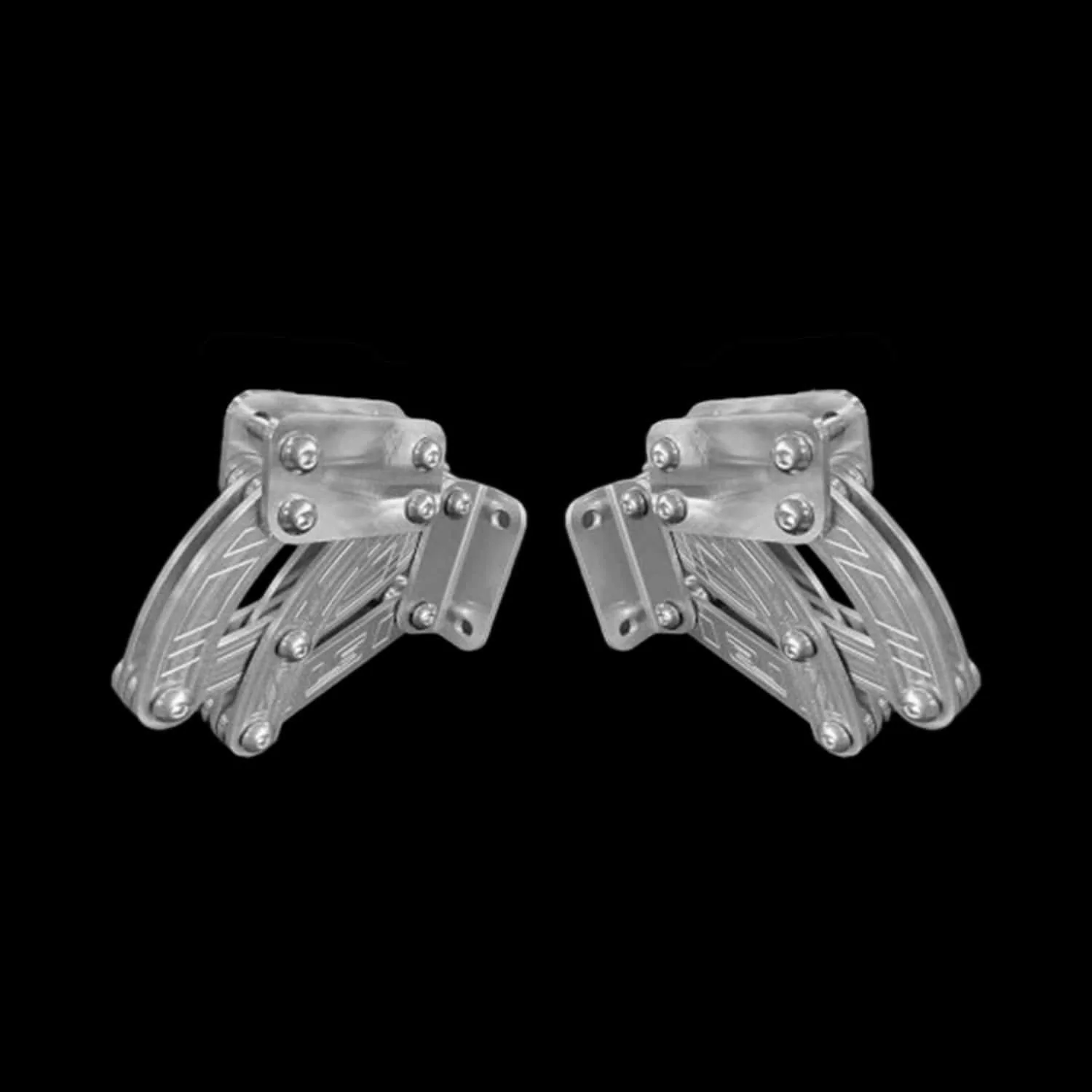

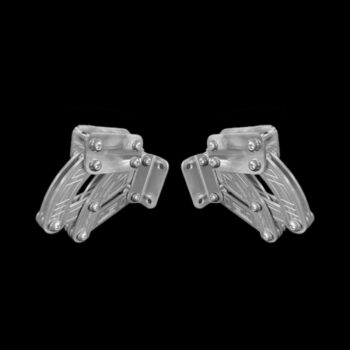

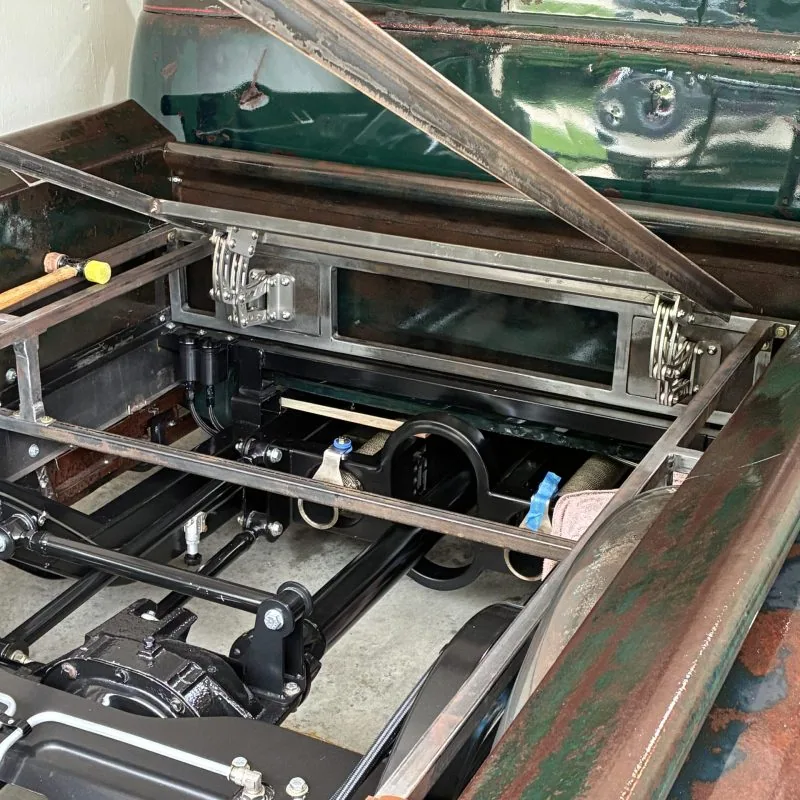

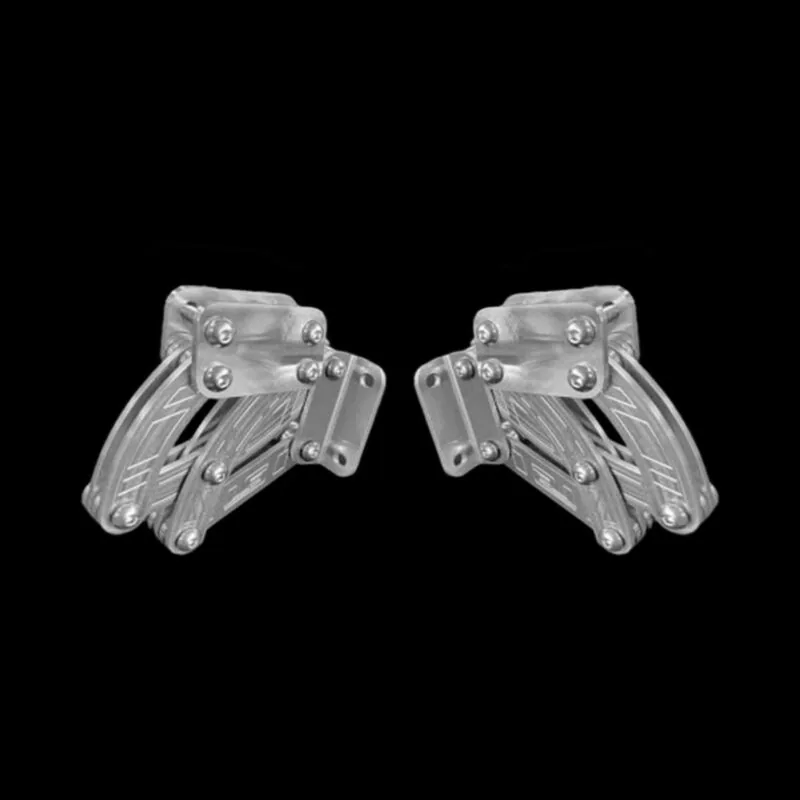

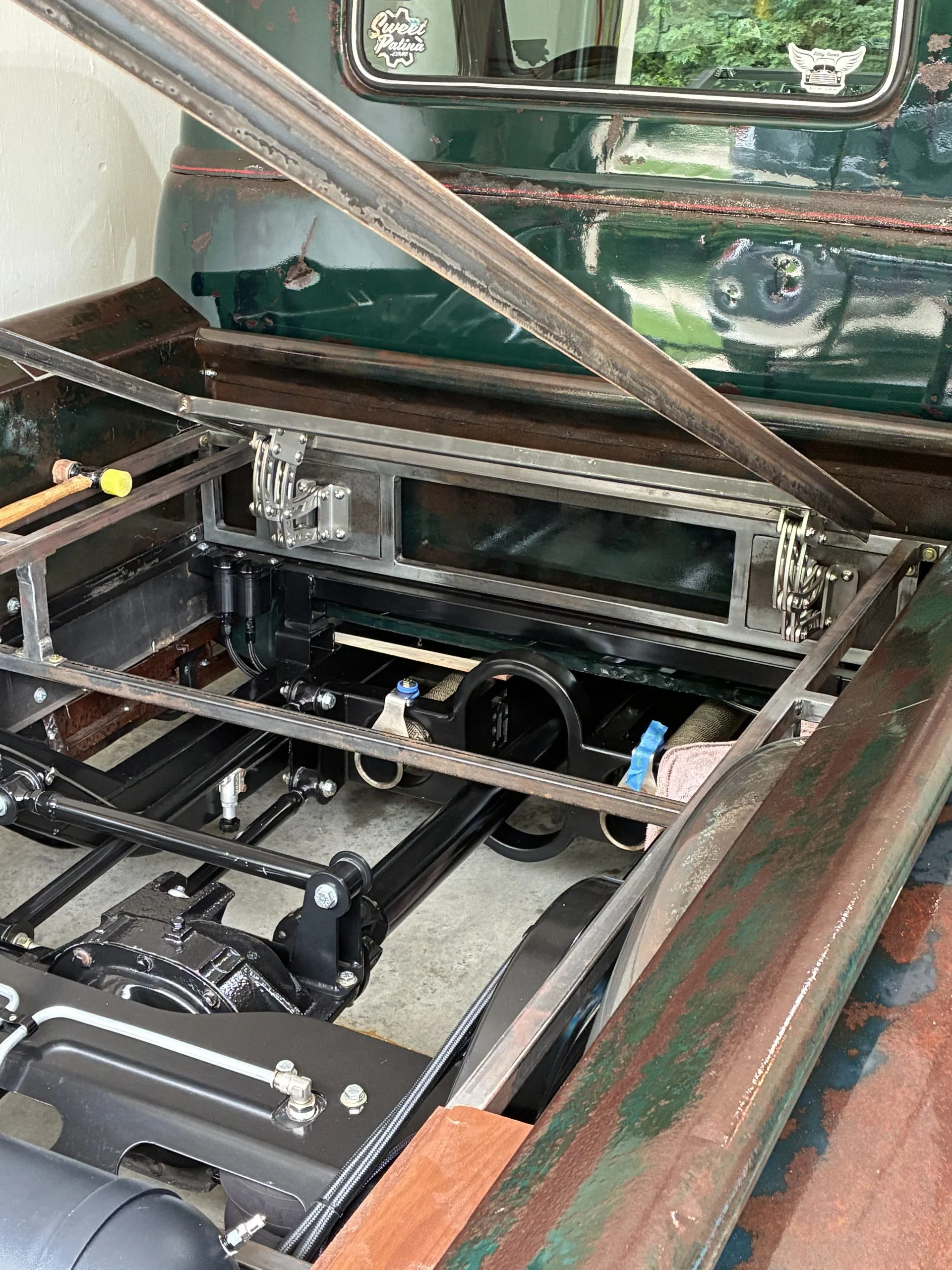

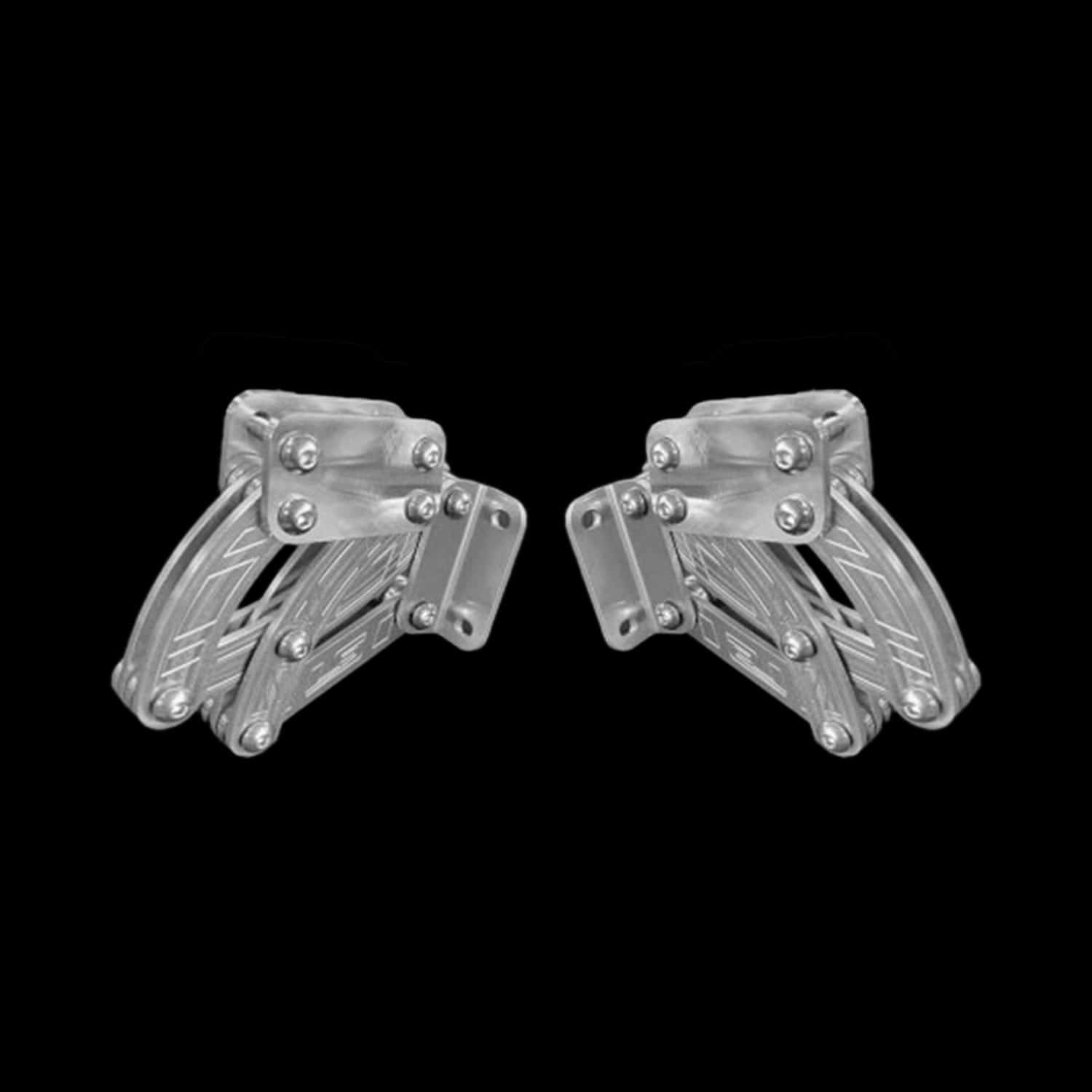

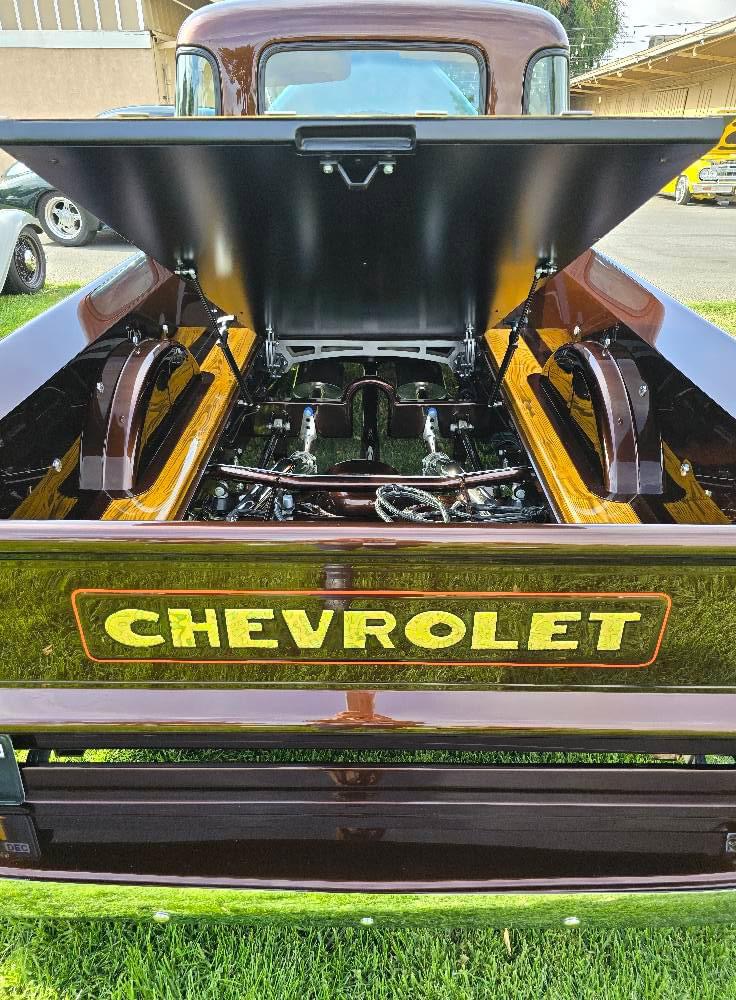

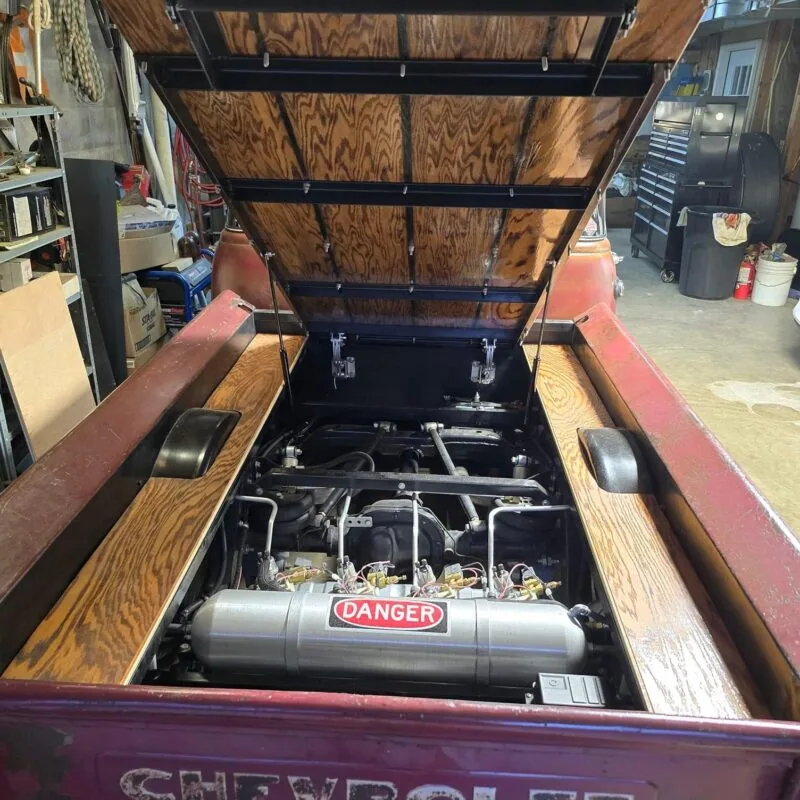

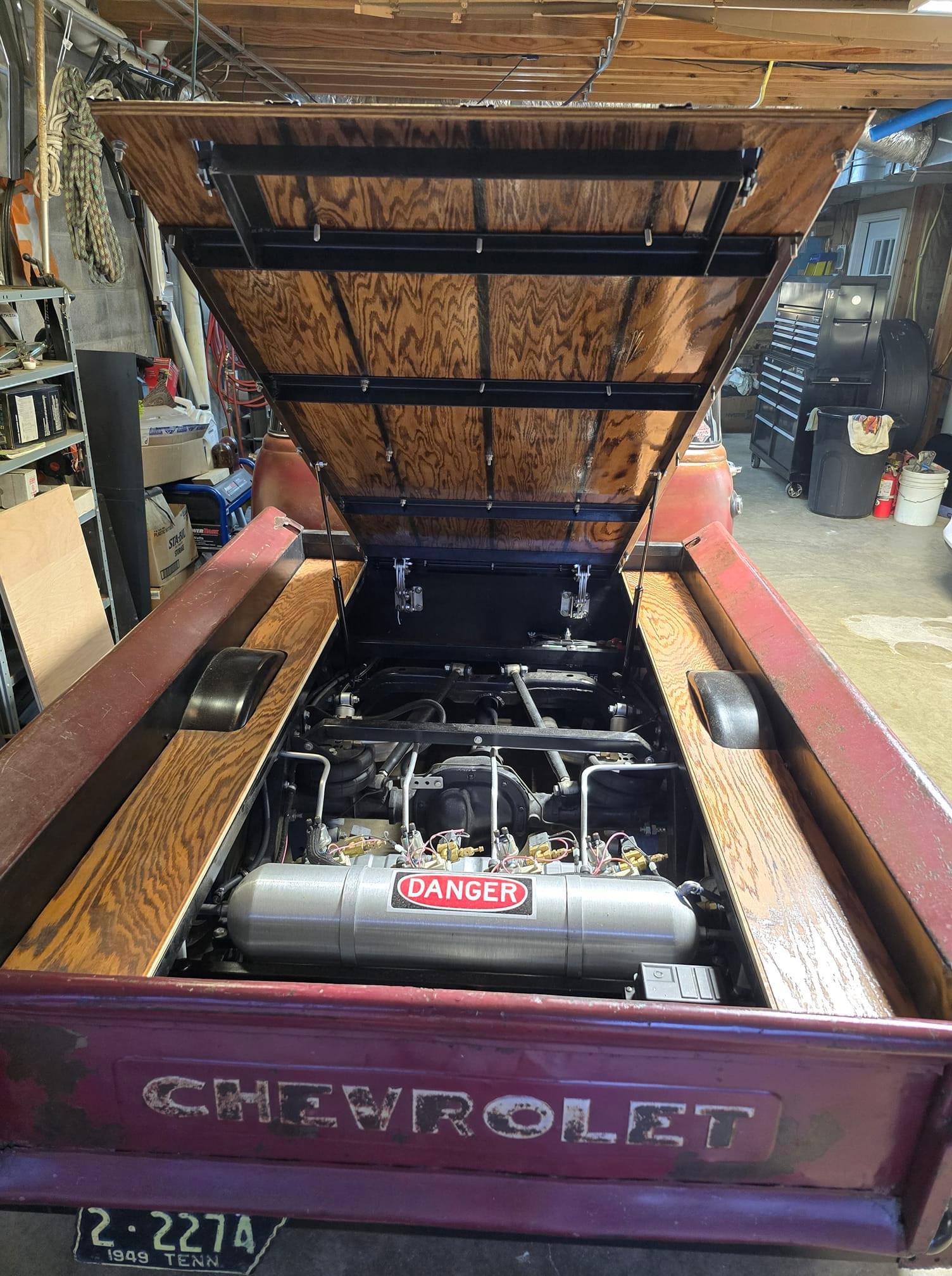

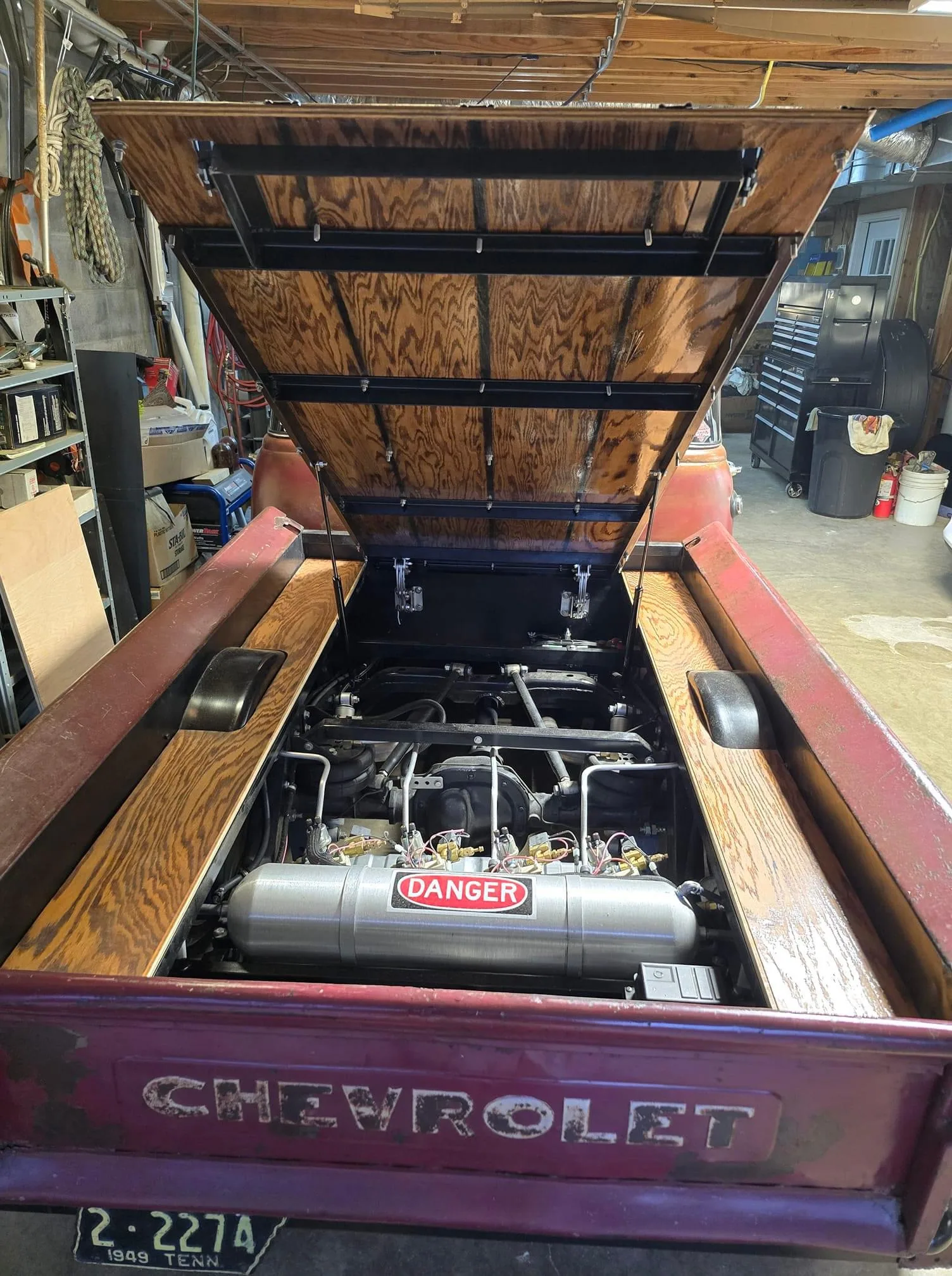

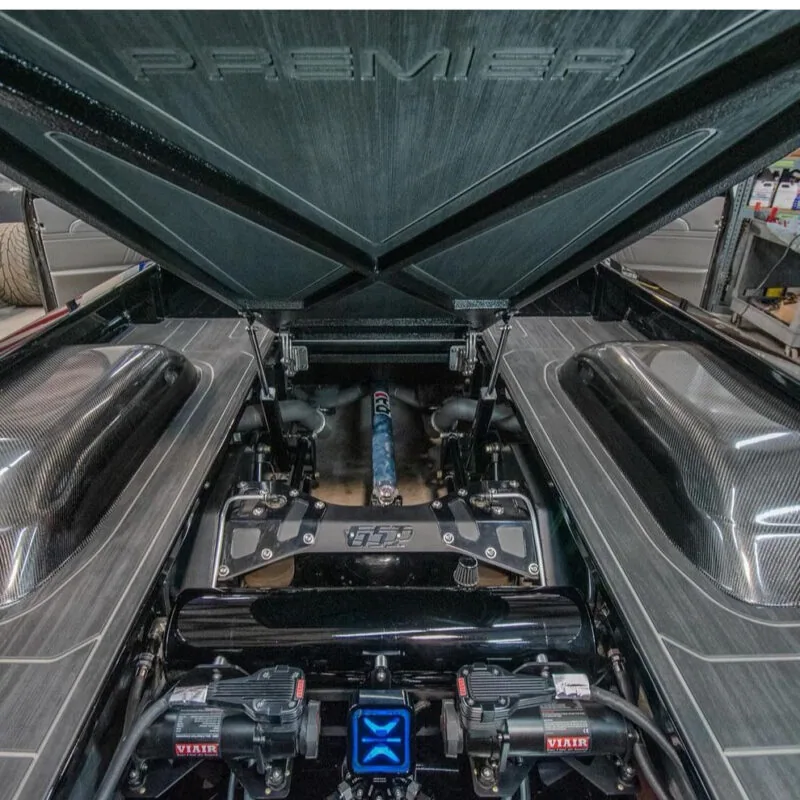

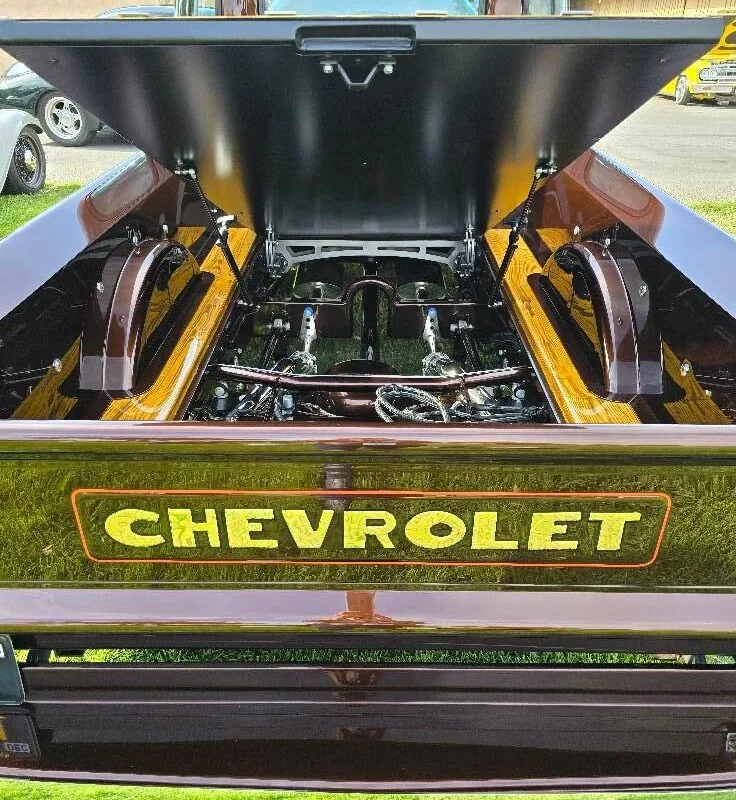

Scissor hinges for a custom truck build — a tilting hood, a tilt bed floor or any custom opening compartment. Double armed and available in stainless or billet aluminum, they carry the panel and keep the pivot tight.
Features

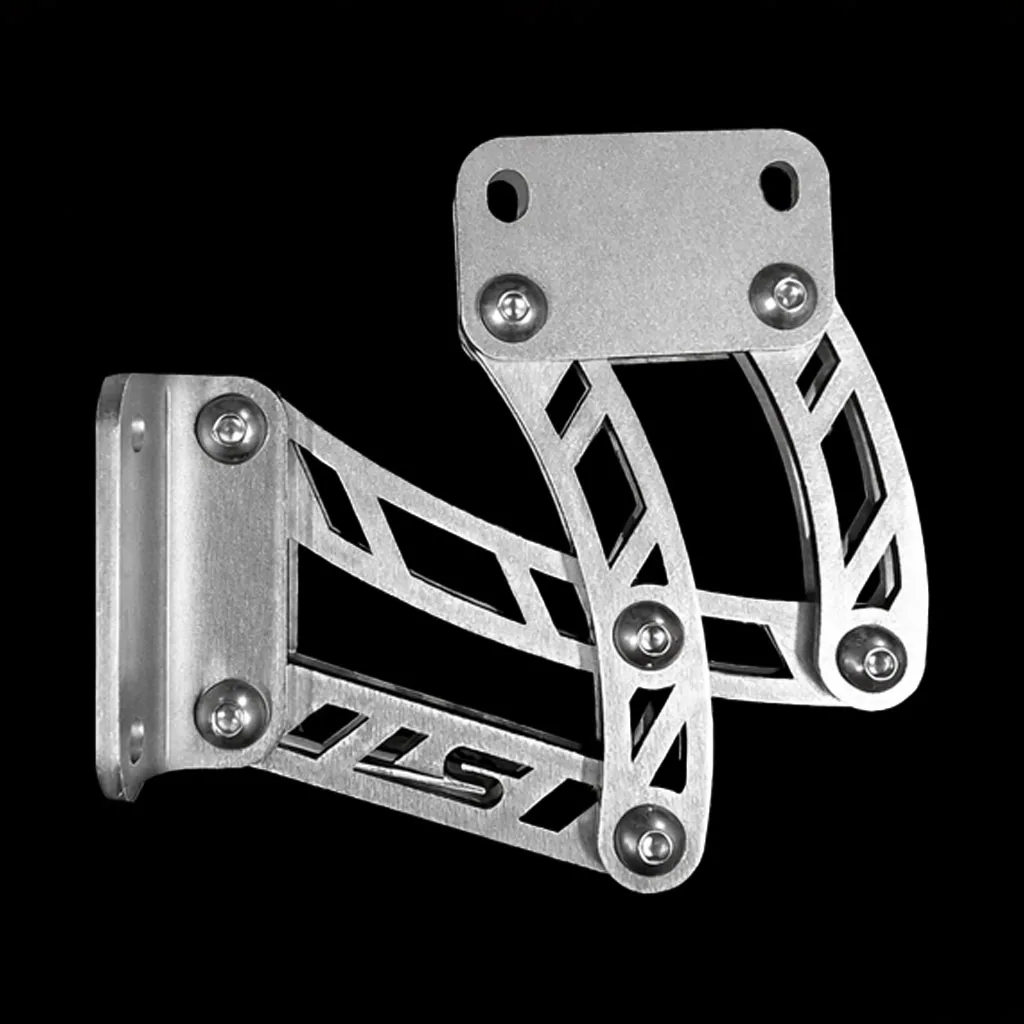

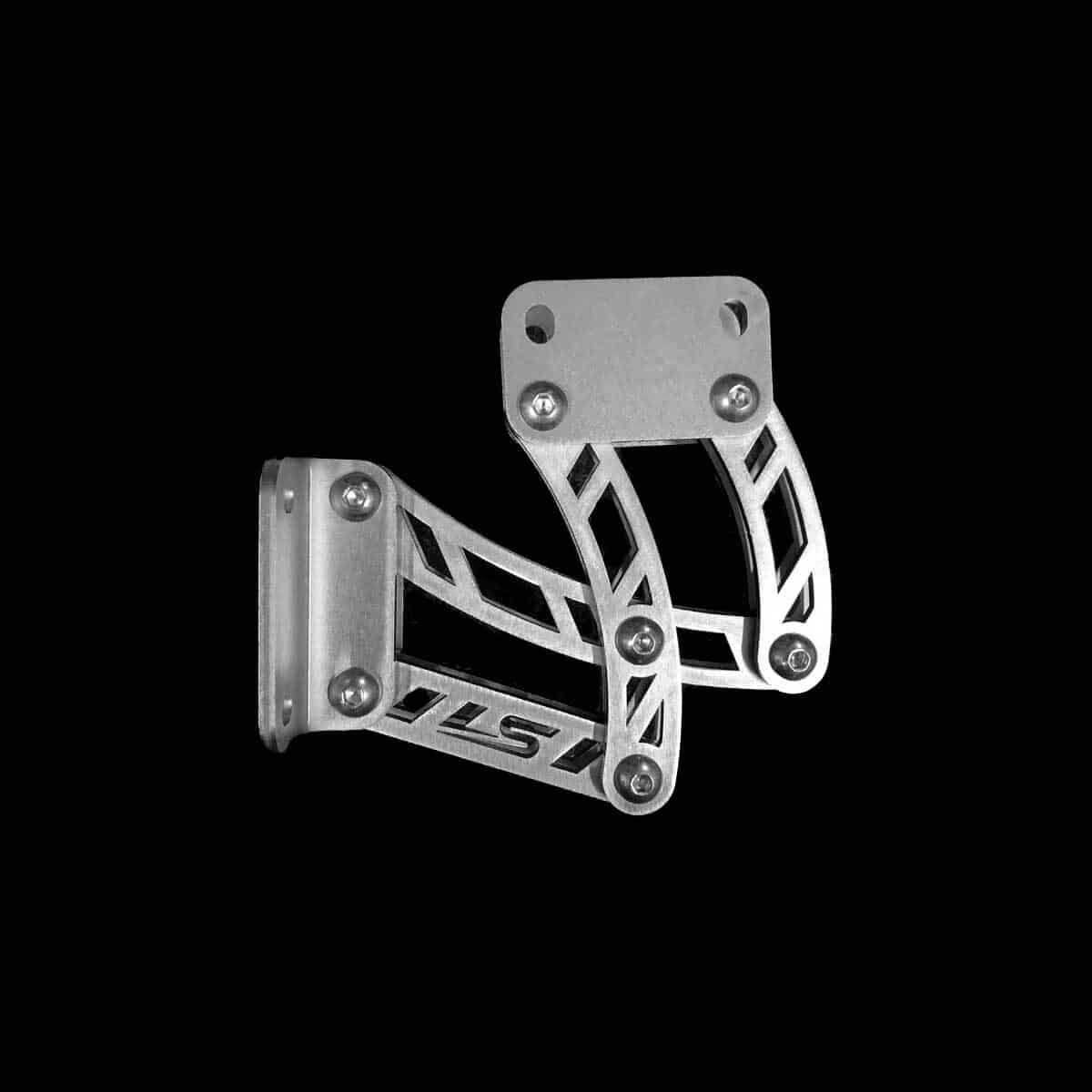

- Laser cut from 3/16" 304 stainless steel, or CNC machined from 3/16" 6061 billet aluminum.
- Double armed for sturdiness over competing hinges on the market.
- Assembled with 3/8" stainless steel bolts, nylon washers and low-profile jam nuts.
- Hole tolerances tightened to 3/8" to eliminate as much play as possible.
- Mounting face of 3.5" x 1" at both mounting locations.
- Sold as a pair.
Choose your option
- Stainless steel, bolt on
- Billet aluminum, bolt on
Fitment notes
Raw stainless hinges have to be disassembled if you plan to paint them. There are several components, so assembly takes time and planning — take detailed photos before you take anything apart.
Scissor hinge installation tips and tricks
Working out which gas struts to use? Our gas spring calculator gives you the force, stroke and length to order from your own measurements.
Pairs well with
Not included

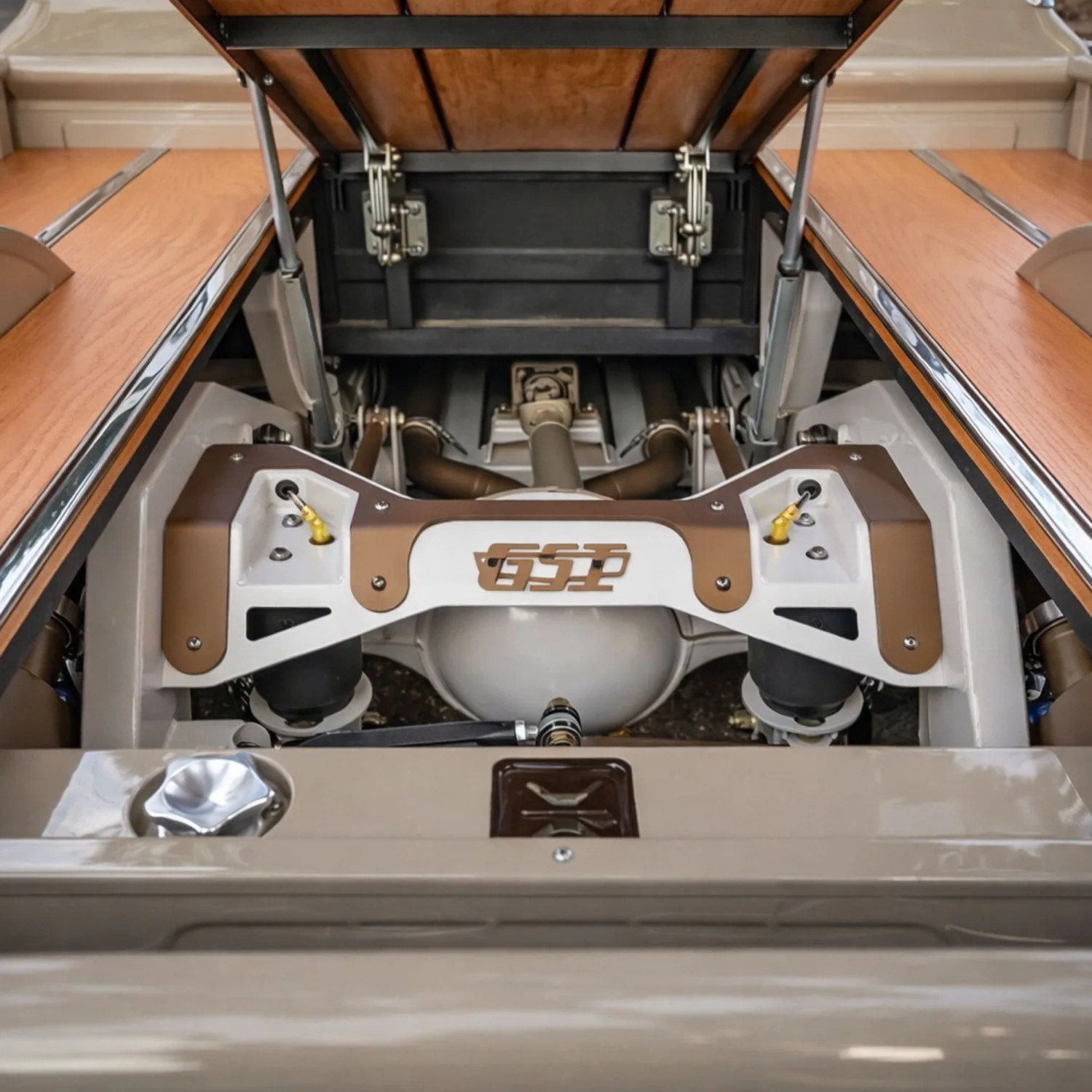

- The gas struts or actuators that raise the panel. Our electric tilt bed lifts are built to work with these hinges.
- Any bracing or reinforcement your own bed floor needs to carry the load.
- Paint or plating. Raw stainless hinges have to be taken apart before they are painted, and there are several components, so photograph everything first.
Truck compatibility and specs
Fits these trucks
1947–2006
Not sure this is the right part for your truck? Send us your year, make and model and we will confirm the fit before you order.
Specifications
- Part number
- USH
- Material
- Billet Aluminum, Stainless Steel
- Brand
- LS Fabrication
- Interior / Exterior
- Exterior
- Weight
- 2.1 kg
Installation
These bolt on, but they arrive assembled with several components. If you are painting raw stainless hinges you will need to take them apart first, so take detailed photos before you do — it makes reassembly straightforward.
Both mounting faces are 3.5" x 1". Our scissor hinge installation tips and tricks page is linked in the description.
Reviews
28 reviews for Universal Tilt Bed Scissor Hinges for Custom Trucks (Pair) | Stainless Steel & Billet Aluminum
Common questions
How much weight will the hinges carry?
They are double armed and cut from 3/16" 304 stainless or machined from 3/16" 6061 billet, assembled on 3/8" stainless bolts with the hole tolerances tightened to 3/8" to take the play out. They are built for a tilting hood, a tilt bed floor or a custom opening panel. A complete bed - floor, wheel wells and sides together - is a heavier job than a single panel, so tell us what the bed is made of and how it is braced and we will say whether this pair is the right choice.
Are they sold singly or as a pair?
As a pair. Each hinge has a 3.5" x 1" mounting face at both mounting locations.
Can I paint them?
Yes, but raw stainless hinges have to come apart first. There are several components, so take detailed photos before you disassemble anything and allow time for the reassembly.
What will hold the bed up once it tilts — and will your electric lifts do it?
Work it out on our gas spring calculator. Put in the length and weight of the panel, how far you want it to open and where the strut mounts land, and it gives you the force, stroke, extended and compressed lengths to order, warns you when the closed mounting distance is too short for any off-the-shelf strut to physically fit, and checks the same numbers against our electric tilt bed lifts so you know before you buy whether the pair is rated for your build. Where the mounts sit moves the answer more than anything else, so try a few positions in the calculator before you drill.
How do I know it fits my truck?
This part is listed for 1947–2006 Chevy, GMC and Ford 3100, 3600, 3800, Blazer, Bronco, C10 and others. The full year, make and model list is in the Truck Compatibility tab on this page. If your truck has been modified, or you are between two of the year ranges we list, send us the year, make and model and we will confirm the fit before you order rather than after.
How long before it ships?
It is a stock item and generally ships within 1-3 business days. Carrier transit time is on top of that, and larger orders can arrive in more than one box on different days.
Still not sure? Contact us before you order.
Pedro (verified owner) –
Quality product would recommend for those looking for raised bed hinges
ANDREW PENA (verified owner) –
Great quality and fast delivery!
Omar G. (verified owner) –
Amazing quality and craftsmanship
Anonymous (verified owner) –
Anthony Franco (verified owner) –

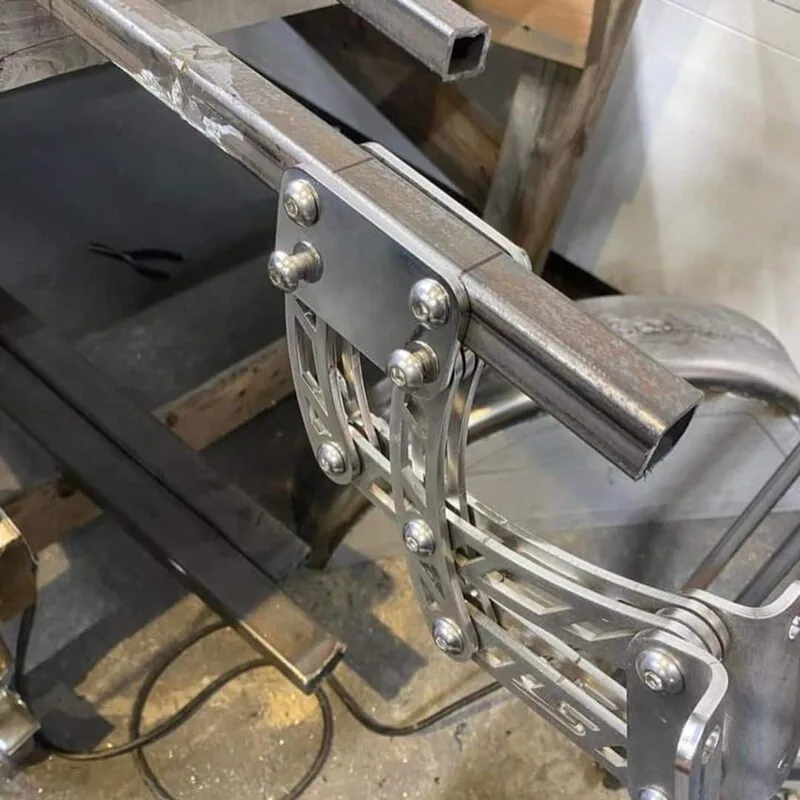

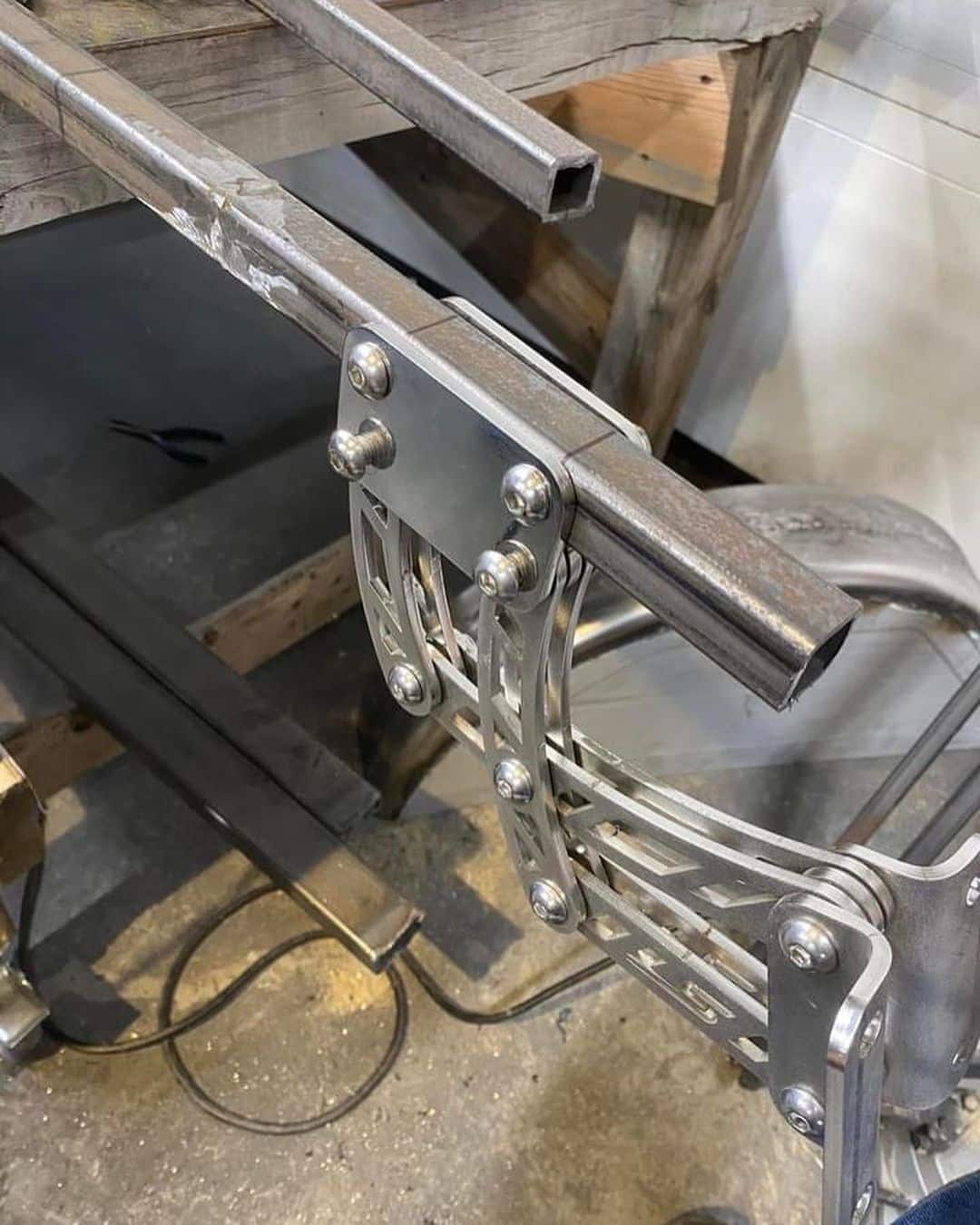

LS hinges have remarkable craftsmanship. They arrive to my house very quickly and their customer service was great. I called them and asked them which diameter square tube They mount on and was given an answer immediately of 1 inch. Can’t wait to install them on my project..
Tony R. (verified owner) –
Jhye Hopkins (verified owner) –
Rodney Stokes (verified owner) –
OMG!!!!! These thiwork better than they look.
After countless hours of trying every type of hinge known to man, tried these and Wow. Absolutely Perfect. Oh, and the customer service is absolutely outstanding, Kris you are a patient man.LOL!!!!! Thank you Brutha.
Boomer Milton (verified owner) –
Can’t express how happy I am doing business with LS Fab
MARK (verified owner) –
another game changing product, haven’t incorporated in build yet, but will be talked about at shows!!!
John Harmon (verified owner) –
Excellent product. Shipping yook a bit…but overall extremely happy
Bryce White (verified owner) –
Tony (verified owner) –
Great quality product, exactly what I needed. Timely shipping even through the holidays from Canada to the US.
Chris Wallschlaeger (verified owner) –
Walter Pyle (verified owner) –
Awesome Product!
Tim Faber (verified owner) –
Dwayne McNeill (verified owner) –
robert rust (verified owner) –
Amazing love it too quality top notch
Walter S. (verified owner) –
Look bad ass.
Larry Caddy (verified owner) –
Roger T. (verified owner) –
awesome product and really fast service/delivery
Mike Milligan –
We purchased these hinges and what a great piece! The quality of these hinges are second to none and with easy installation made these hinges even better. I did have a question about the hinges prior to install and the customer service was five star. I definitely recommend these hinges if you want a high quality product.
admin –
Thank you a ton for your previous and continued support! We are glad to be able to have you as a return customer and greatly appreciate your support and review!
Life in garage (verified owner) –
We have been using these hinges for a couple of years now in many builds. They works perfectly and they looks amazing!
Rex Williams (verified owner) –
Love these sissor hinges. Work great,top quality products once again from LS Fabrication. I’ll be ordering more parts , great customer service!
Chris Yoder (verified owner) –
These hinges are well worth the money, the quality and precision is exactly what you’d expect as well! Requires little fabrication skills to install too. They have a custom look you’ll want to show off and have filled a much needed void in the custom truck market. I’ve purchased pretty much every product these guys have released and the quality is always top notch!!
Scott Tesone (verified owner) –

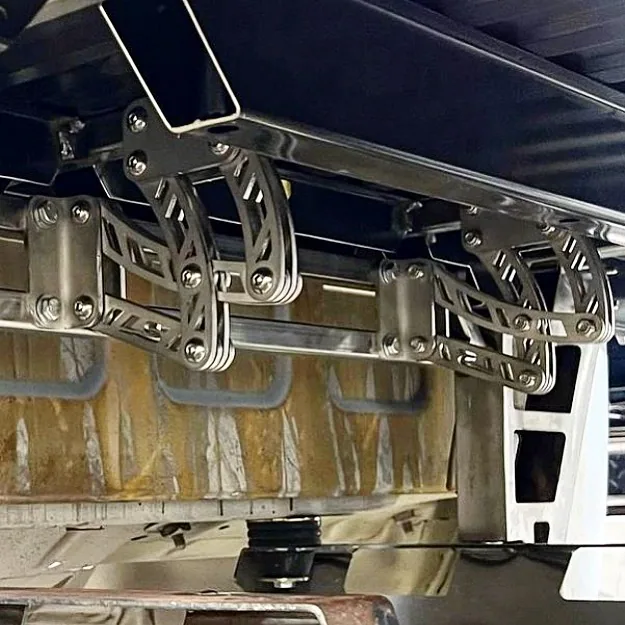

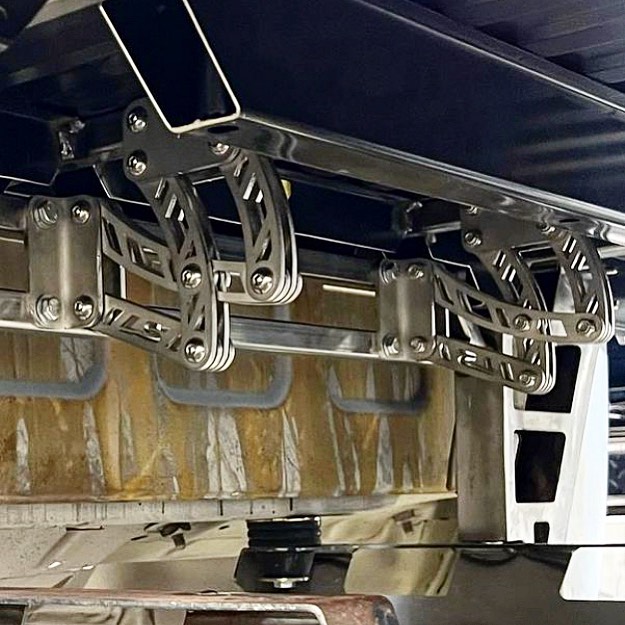

This is a great set of hinges! The motion of these hinges is outstanding and when used on a tilt bed floor they enable you to have a very tight tolerance at the header panel of the bed. They also enable you to have tight tolerances to the side of the bed due to their rigidity. The hinges are nicely laser cut and come with all necessary bushings and stainless hardware. All it takes is a couple welds to get them installed. Along with a great product, LS FAB has by far the best support of any shop or parts company that I’ve worked with.. I cant say enough positive things about these guys!
Andre 1_bad49 (verified owner) –
These hinges are awesome!!! Adds a great custom look to your truck!… and you can’t be the quality and price! They are pretty straight forward and requires little fab work. Makes you want to ride around with your bed tilted all day😂😂😂!… and the guys at LS Fab are a phone call away… on anything you purchase from them with questions or help. They came really quick too! This is just my latest mod from them and I’m sure not my last!… because they’re always coming up with cool products for your truck!!!
