Description

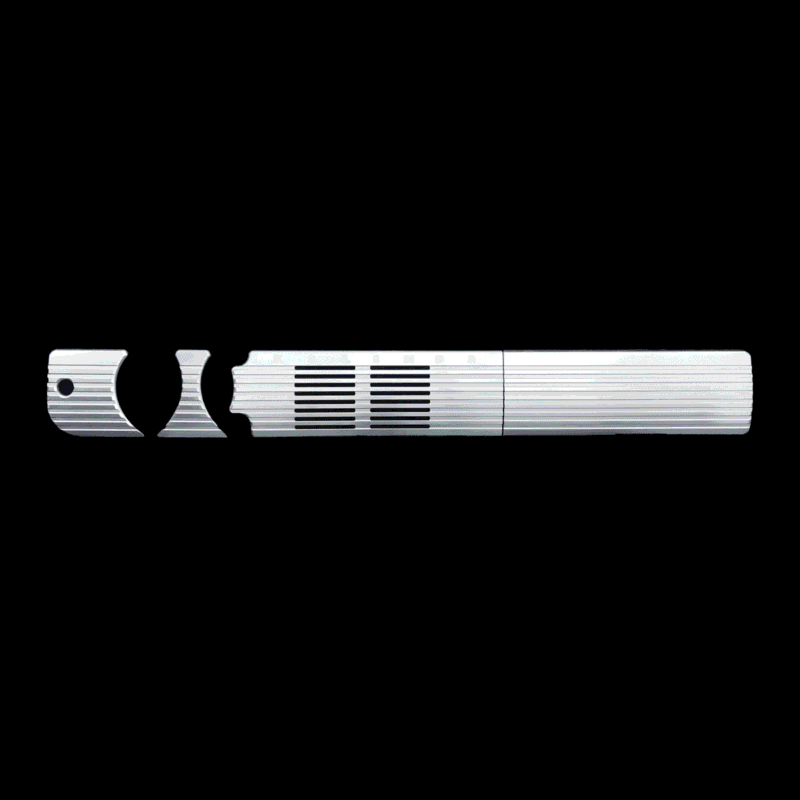

A four-piece billet dash for 1947–1953 GMC and Chevrolet Advance Design trucks. The pieces are CNC milled from 6061 aluminum with a machined finish, and the extended speaker grille cover has the ash tray deleted.
What is included
- Billet glove box door
- Billet extended speaker grille cover
- Billet gauge split piece
- Billet driver side dash piece
- Stainless steel LS Fab glove box latch
- (4) 10-32 3/8" stainless Phillips screws for mounting the billet glove box to the factory hinges (hinges not provided)
- (2) 10-32 1/4" stainless Phillips screws for mounting the latch to the billet glove box
- (8) 8-32 5/8" stainless Allen head studs for mounting the billet pieces to the dash
- (8) 8-32 stainless serrated flange nuts for the speaker grille cover studs
- (1) Allen key for installing the speaker grille studs
Choose your option
- Blank
- Custom engraving
Fitment notes
Four holes have to be drilled into the dash, two behind each of the new pieces on the driver side of the speaker grille. The gauge split piece covers the original offset column indent in the dash, so a drop column has to be used.
If you order custom engraving, we contact you by email after the order comes in and send a rendering for your approval before anything is machined.
Not included
- The factory glove box hinges, which are reused.
- A drop steering column. The gauge split piece covers the original offset column indent, so a drop column has to be used.
- A drill. Four holes are drilled into the dash, two behind each of the new pieces on the driver side of the speaker grille.
Truck compatibility and specs
Fits these trucks
1947–1953
Not sure this is the right part for your truck? Send us your year, make and model and we will confirm the fit before you order.
Specifications
- Part number
- 4753PBD
- Material
- Billet Aluminum
- Brand
- LS Fabrication
- Interior / Exterior
- Interior
- Weight
- 3.2 kg
Fits alongside
Popular in 47-54 GMC Chevy Truck Parts:
Installation
All required mounting hardware is included. Instructions and templates to help with the install are under the installation tab.
Four holes need to be drilled into the dash, two behind each of the new pieces on the driver side of the speaker grille. The gauge split piece covers the original offset column indent, so plan on a drop column.
Reviews
4 reviews for Phantom Billet Dash – 47-53 GMC Chevy Truck
Common questions
Are the glove box hinges included?
No. The billet glove box door mounts to your factory hinges with the supplied stainless screws.
Is it a straight bolt-in?
No. Four holes have to be drilled in the dash, two behind each of the new pieces on the driver side of the speaker grille, and the gauge split piece covers the original offset column indent, so the truck needs a drop column.
What finish do the pieces come in?
CNC milled from 6061 aluminum in a machined finish.
How do I know it fits my truck?
This part is listed for 1947–1953 Chevy and GMC 3100, 3600, 3800 and Suburban. The full year, make and model list is in the Truck Compatibility tab on this page. If your truck has been modified, or you are between two of the year ranges we list, send us the year, make and model and we will confirm the fit before you order rather than after.
How long before it ships?
It is a stock item and generally ships within 1-3 business days. Carrier transit time is on top of that, and larger orders can arrive in more than one box on different days.
What if it is not right for the truck?
You have 30 days from delivery to request a return. The part needs to come back new, uninstalled and in its original packaging - once a part has been trimmed or welded it cannot go back. Return shipping is at your cost, and we ask that returns come by Canada Post. Made-to-order, sale and clearance items are final sale. The full terms are on our returns page.
Still not sure? Contact us before you order.
Kerry Selles (verified owner) –
Exactly as expected
Great
Kris Hauser –
Thanks so much. Was great working with you to make the first ever Double Din RHD Phantom dash. Have another one in the works already actually!
Andrew Fortescue –
The previous review from Scott exactly mirrors my experience with LS Fabrication. Regular communication during the process to create a very specific dash panel for my 52 pickup and I could not be more pleased with the outcome.
Great job, thank you.
Scott Tesone (verified owner) –
This dash is the absolute centerpiece of my interior and makes my truck stand out while maintaining the 50’s theme. The quality of machining and of the product overall are second to none. Kris and team were able to customize my order with an opening in place of the speaker slots to hold my Terminator X LCD/touchscreen display. I cant imagine how I could be happier with this purchase and the support I received during the order process.
