Universal Tilt Bed Scissor Hinges for Custom Trucks (Pair) | Stainless Steel & Billet Aluminum

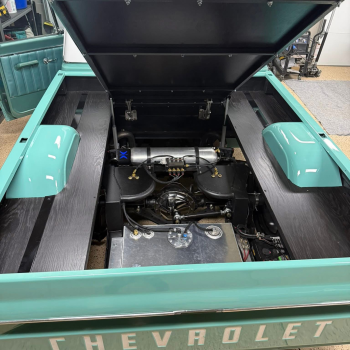

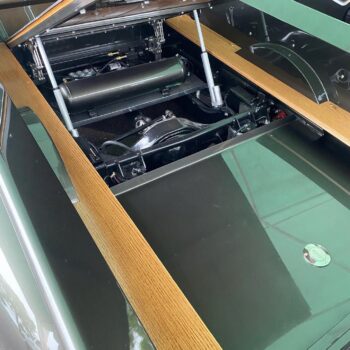

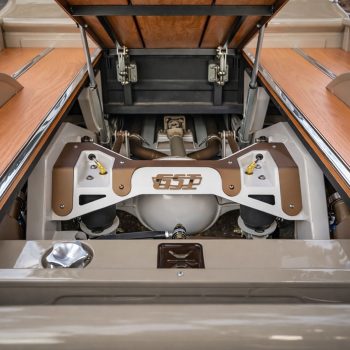

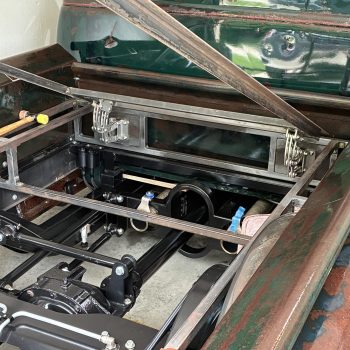

Looking for tilt bed scissor hinges for your custom truck build? Whether you're working on a tilting hood, a tilt bed floor, or a custom opening compartment, these precision-engineered scissor hinges are built to deliver the strength, durability, and clean look your project demands.
Built from Premium Materials

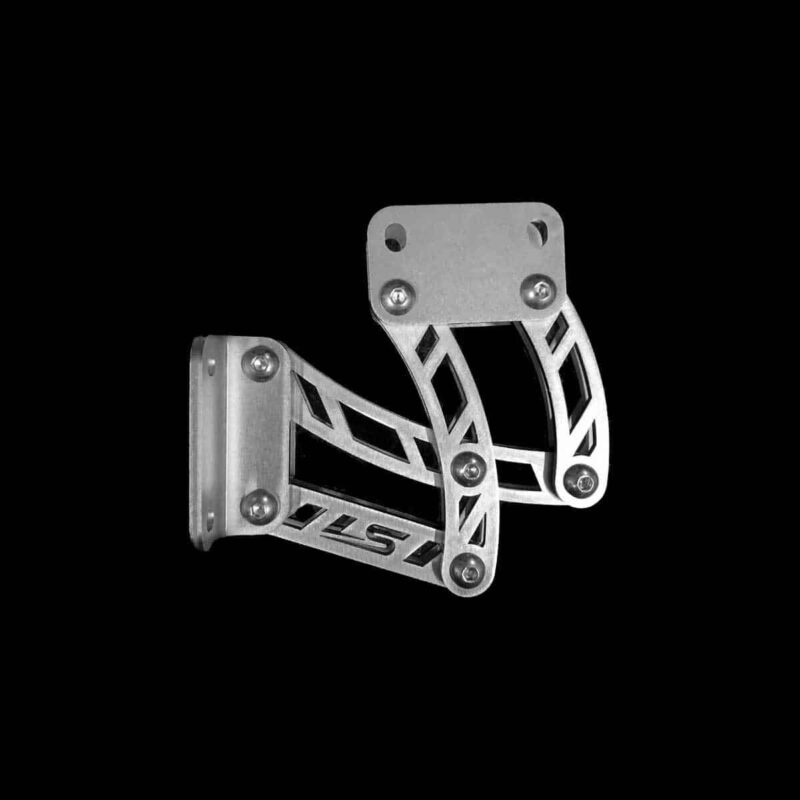

Each hinge is laser cut from 3/16" 304 stainless steel or CNC machined from 3/16" 6061 billet aluminum, giving you the choice between corrosion resistance and lightweight strength. Both options are double armed for superior sturdiness over competing hinges on the market.
Precision Engineered for Minimal Play
Assembled with 3/8" stainless steel bolts, nylon washers, and low-profile jam nuts, these hinges are built tight from the ground up. Hole tolerances have been tightened to 3/8" to eliminate as much play as possible, ensuring smooth, precise movement every time.
Specs at a Glance
- ✅ Laser cut from 3/16" 304 stainless steel or CNC machined from 3/16" 6061 billet aluminum
- ✅ Double armed for maximum sturdiness
- ✅ Assembled with 3/8" stainless steel bolts, nylon washers, and low-profile jam nuts
- ✅ Tightened 3/8" hole tolerances for minimal play
- ✅ Mounting face: 3.5" x 1" on both mounting locations
- ✅ Sold as a pair
Before You Install
Raw stainless hinges will require disassembly if you plan to paint them. Assembly requires time and planning as several components are included. We strongly recommend taking detailed photos before disassembling to make reassembly straightforward.
Need help sizing your gas struts? Use the "Calculate Your Gas Spring Application" button to determine the correct length, load, and placement for your setup.
If you are doing work on your classic truck bed, you need our awesome products that go perfectly with our scissor hinges. Finally, using Tilt Bed Scissor Hinges for Custom Trucks gives you reliable performance and style.
Additional information
| Weight | 2.1 kg |
|---|---|
| Dimensions | N/A |
| Truck Year | 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| Truck Make | |
| Truck Model | 1300, 3100, Advance Design, Advance Design Era, Apache, Blazer, C10, C1500, C20, Cameo, Carry All, Cheyenne, FleetSide, Jimmy, K, K10, K20, K5, OBS, Panel, Sierra, Silverado, Squarebody, Squarebody C10, StepSide, Suburban, Task Force, Task Force Era, Thriftmaster, Yukon |
| Product Types | |
| Material | |
| Brand | |
| Interior / Exterior | |
| Type | Stainless Steel (Bolt On), Billet Aluminum (Bolt On) |
