Description

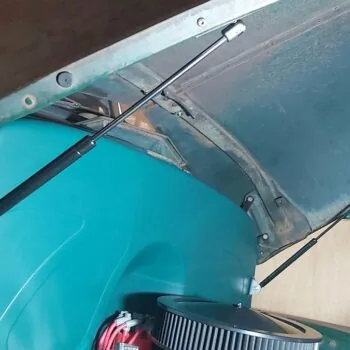

This kit swaps the factory hood springs on a 1947–1954 Chevrolet or GMC Advance Design truck for gas struts. The struts damp the hood open and closed instead of fighting you, and the laser cut, precision formed brackets give the hood a solid mounting point at the firewall and along the hood edge.

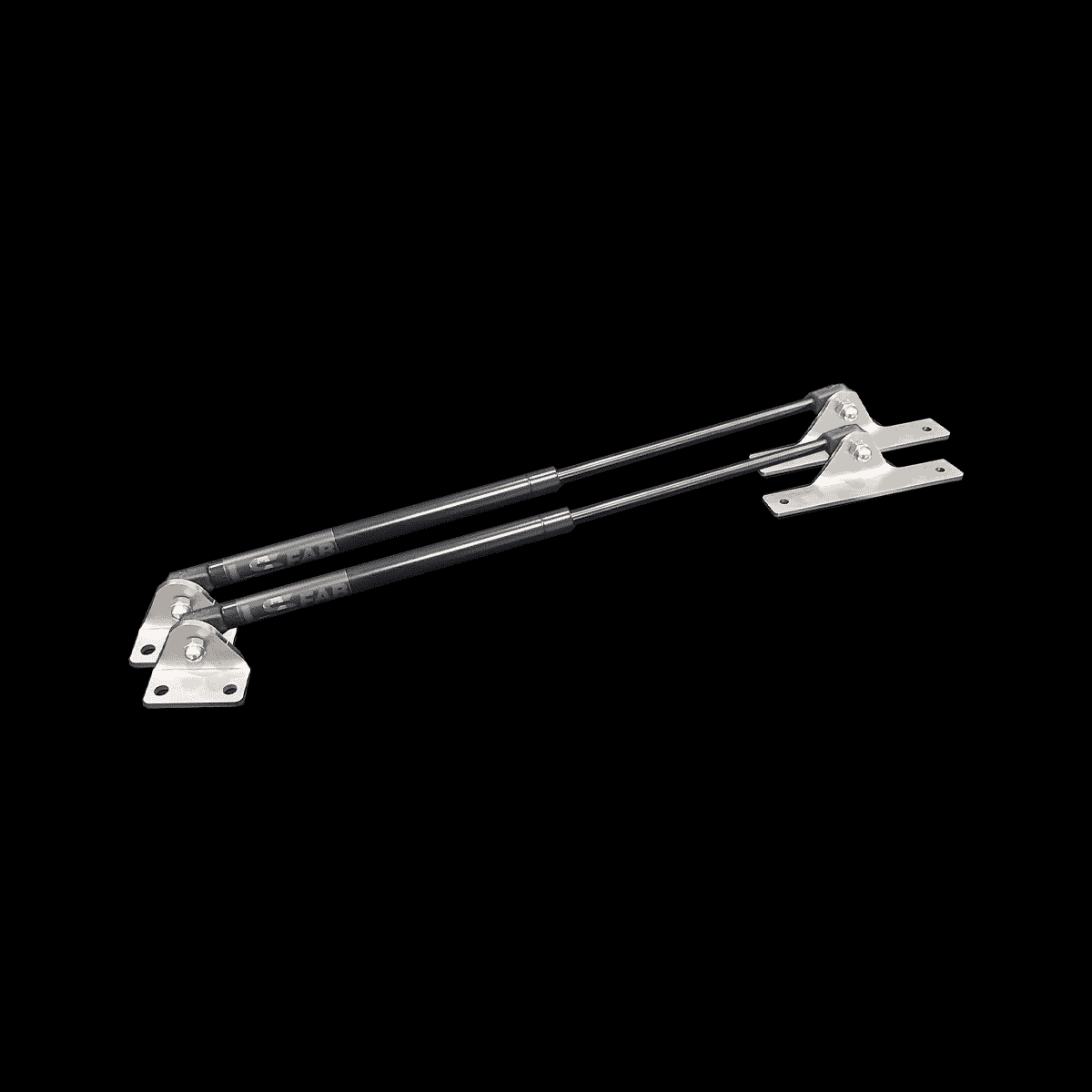

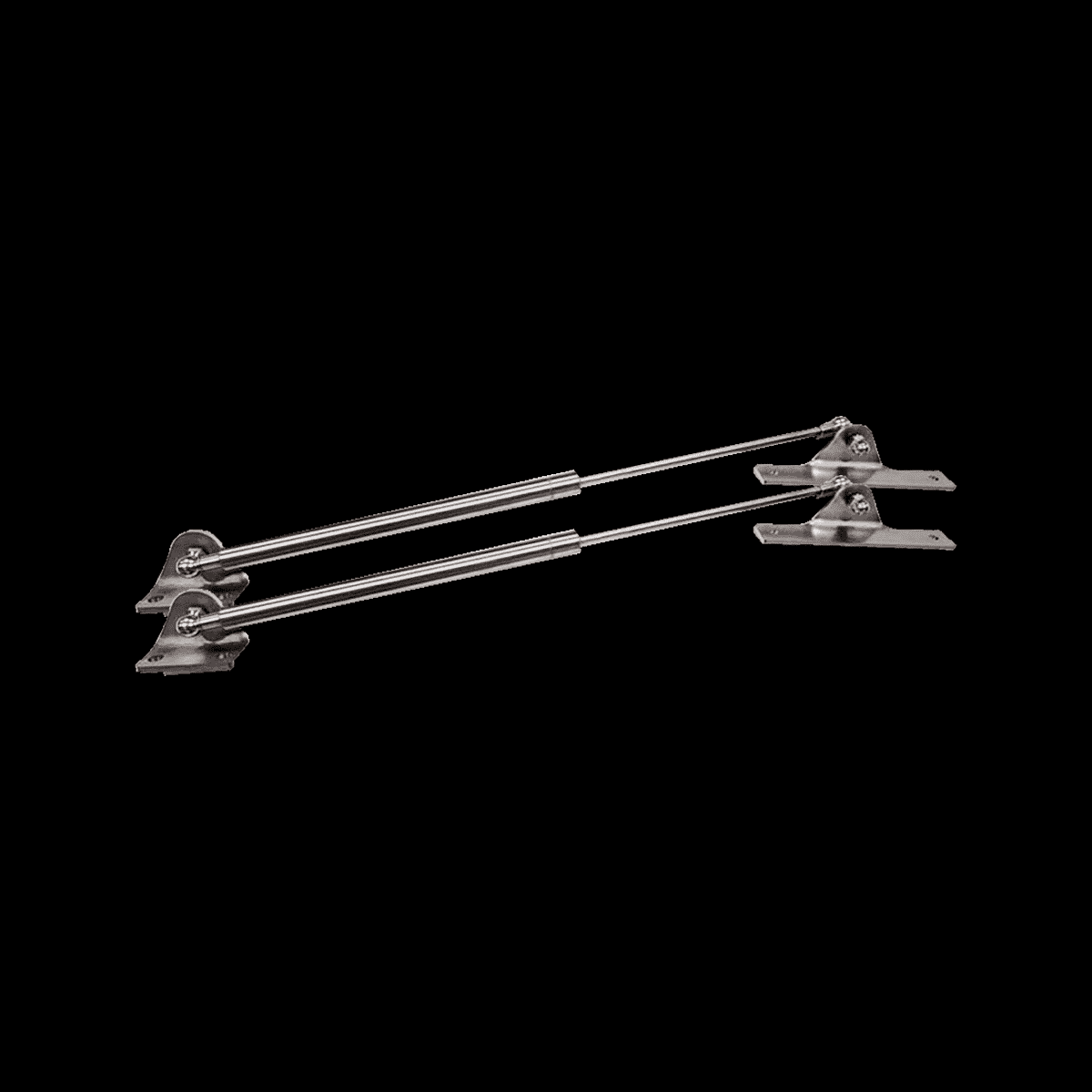

What's in the kit
- (2) firewall stainless steel mounting brackets.
- (2) 5" stainless steel hood mounting brackets.
- (2) heavy duty sealed bearing gas struts.
- (4) 5/16" gas strut ball studs.
- All required mounting hardware, including our ultra low profile hood mount bolts.
Choose your option
- Black
- Stainless steel
- Stainless with billet brackets
Fitment notes
The kit is designed for factory hoods and has not been tested with aftermarket or fiberglass hoods. On a non-stock hood the strut strength may be too much or not enough.
Hood realignment may be required. If the truck has no factory hood springs or struts on it now, the back of the hood near the cowl will very likely pop up once the strut force is added, and the hinges and latch may need adjusting. It happens on trucks with factory springs as well, but rarely.
Check out our full range of custom 47-54 Chevy truck parts and accessories.
Not included
- Nothing further for a factory steel hood. The firewall brackets, hood brackets, struts, ball studs and all mounting hardware are in the kit.
- The factory hood springs come off during the install and are not reused.
- Any hinge and latch adjustment the hood needs afterwards. If the truck currently runs no springs or struts, expect the back of the hood to sit up until it is realigned.
Truck compatibility and specs
Fits these trucks
1947–1954
Not sure this is the right part for your truck? Send us your year, make and model and we will confirm the fit before you order.
Specifications
- Part number
- 4754HSK
- Material
- Raw Steel, Stainless Steel
- Brand
- LS Fabrication
- Interior / Exterior
- Exterior
- Weight
- 1.5 kg
Installation

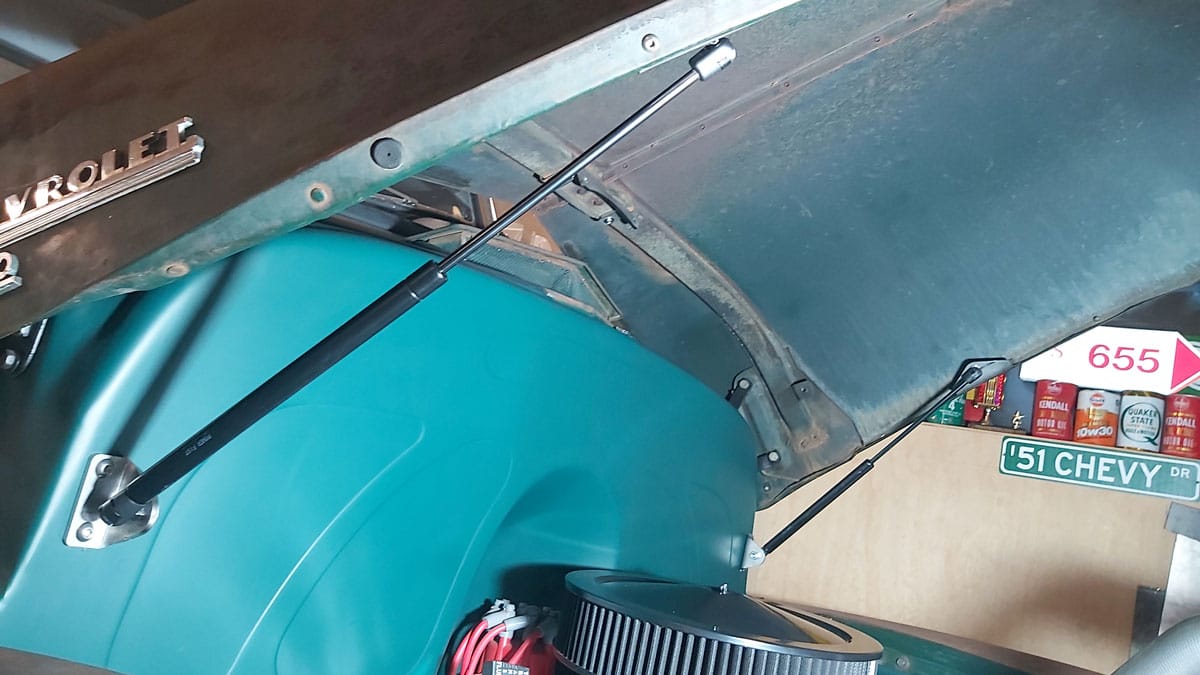

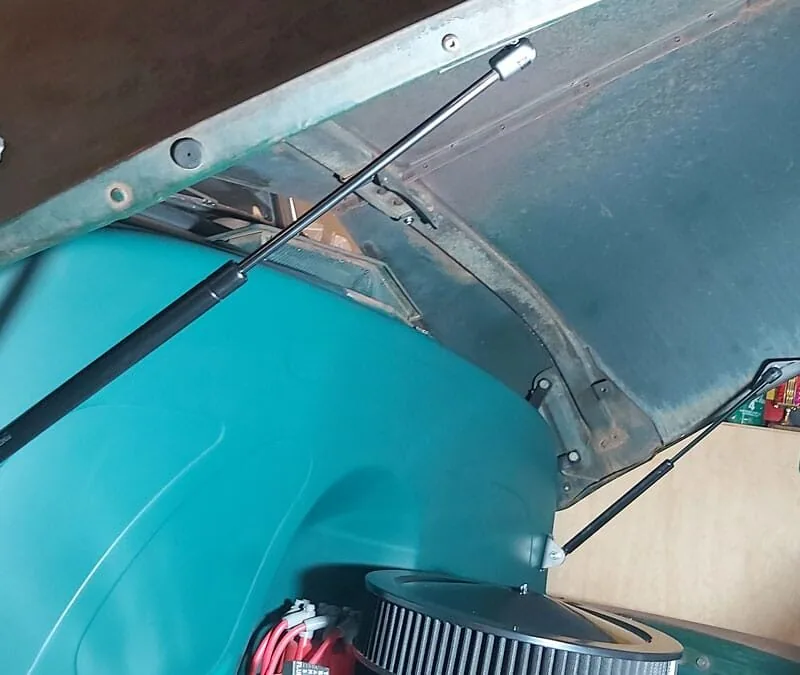

The firewall brackets bolt straight to the factory hood spring holes with the supplied stainless button head hardware, and the ultra low profile hood bracket bolts keep the brackets from rubbing the fenders. The 5" hood bracket needs two 1/4" holes drilled in the hood edge: put the first 5.75" forward of the rear hood bumper rubber, and the second 5" on center from it toward the front of the truck. Mount the ball stud on the outside of the firewall bracket so the strut sits on the fender side.
Do not use the measurements shown in the install video. They are for the older kit, not the current 5" hood brackets. Plan on checking hood alignment afterward and adjusting the hinges or latch if the hood sits high at the cowl.
Reviews
96 reviews for Hood Strut Kit – 47-54 GMC / Chevy Truck
Common questions
What comes in the hood strut kit?
Two firewall mounting brackets, two 5" hood mounting brackets, two heavy duty sealed bearing gas struts, four 5/16" ball studs and all the mounting hardware, including the ultra low profile hood mount bolts. Finish options are listed at the top of the page.
Do I have to drill?
Only the hood. The firewall brackets bolt to the factory hood spring holes, while each 5" hood bracket needs two 1/4" holes in the hood edge - the measurements are in the installation notes on this page. Do not use the measurements in the install video, which are for the older kit.
Will it work with a fibreglass or aftermarket hood?
The kit is designed around the factory hood and has not been tested on aftermarket or fibreglass hoods. On a lighter or heavier hood the strut force can be too much or not enough, so treat it as untested rather than confirmed.
Will my hood still line up afterwards?
Plan on checking it. If the truck has no factory hood springs, the back of the hood near the cowl may sit high once the strut force is added, and the hinges or latch will need adjusting.
How do I know it fits my truck?
This part is listed for 1947–1954 Chevy and GMC 3100, 3600, 3800 and Suburban. The full year, make and model list is in the Truck Compatibility tab on this page. If your truck has been modified, or you are between two of the year ranges we list, send us the year, make and model and we will confirm the fit before you order rather than after.
How long before it ships?
It is a stock item and generally ships within 1-3 business days. Carrier transit time is on top of that, and larger orders can arrive in more than one box on different days.
Still not sure? Contact us before you order.
KEITH WILSON (verified owner) –
Hi guys, let me say I am extremely impressed with, not only the struts that you sent me for my 1954 chef pick up, but also the speed with which you processed my order and got it to me, on the Western side of Australia. You are to be congratulated on producing a great product. I fitted the struts the day I received them and the result is fantastic. Again, all the best. Keith Wilson.
John (verified owner) –

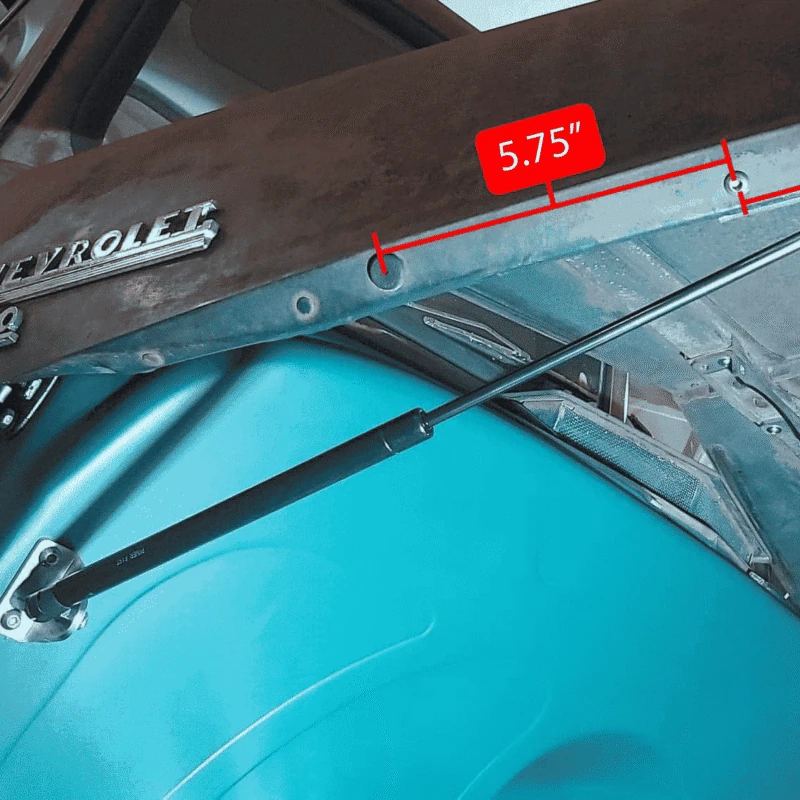

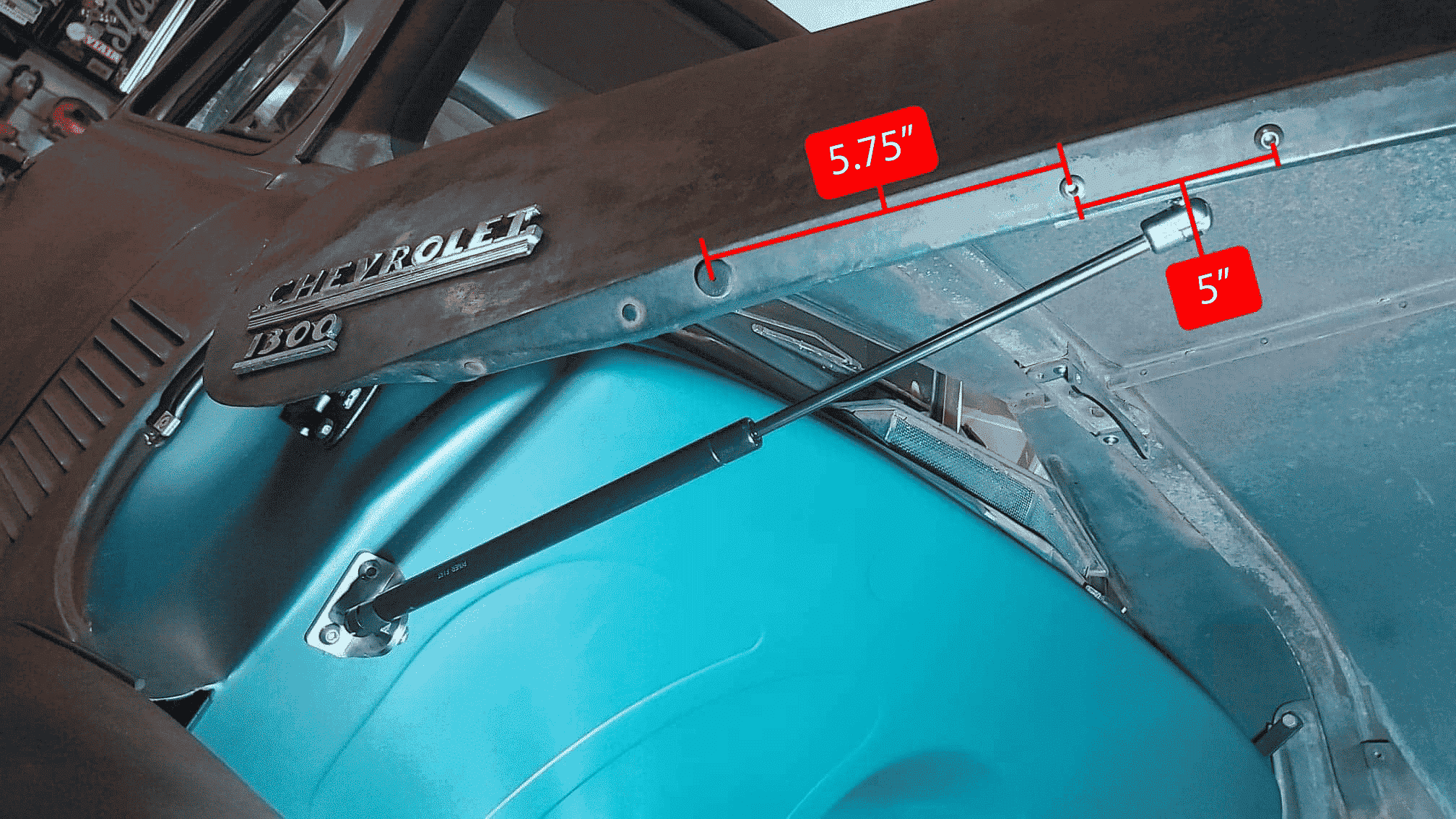

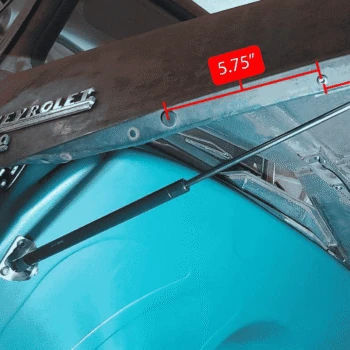

FYI– my hood bracket mounting was 5-3/4″ from hood bumper, then 5″ to the next hole–not 3″ hood works perfectly. Thanks
Ron (verified owner) –
James W. (verified owner) –
Great product đź‘Ś
JON Dyck (verified owner) –
They look great and work perfectly
Wade Doll (verified owner) –
Great product and very fast shipping
John A. (verified owner) –
MATTHEW C. (verified owner) –
Excellent company and awesome products!!!
Greg (verified owner) –
Nice, clean look, everything fits, looks great.
Nick (verified owner) –
Kit is nicely made and very easy to install.
Benjamin B. Madrid (verified owner) –
Painless installation . Took me a just a little over an hr to install. Recommending this product yo my buddy, he is rebuilding a 56 Chevy. Shit can the old hood hinges.
Eli (verified owner) –
Wayne Hedrick (verified owner) –
JAMES WARWICK (verified owner) –
Barry Virgoe (verified owner) –
Service was excellent especially since we had a postal strike. I have not installed them yet but based on the you tube video I watched, they seemed relatively easy to install. This seems to be a nice cure for an age old problem.
Bill K. (verified owner) –
Ryan (verified owner) –
Great company to deal with
Jon S. (verified owner) –
Way better than stock hinges, functions very smooth when opening, very nice product, highly recommend
David R. (verified owner) –
Great products and fast shipping.
Scott Harvey (verified owner) –
The #1 issue with my kit is once the safety latch is unhooked the hood after being a couple inches open stalls, you then have to lift it a bit more to get it to slowly open itself all the way, dont know if the gas struts I received are a bit weak or that is normal. #2 the stainless brackets had some sharp edges, handle with care, otherwise a terrific kit thats simple to install looks 100% better than the stock springs, well designed- nice product. 1954 CHEVY Truck
Wade Myers (verified owner) –
admin –
Thanks so much for the 5 star review!
admin –
Thanks for the 5 star review!
Anonymous (verified owner) –
Great product, Great company to deal with
Barry Franz (verified owner) –
Matthew B. (verified owner) –
Worked out very well would recommend . Great information
Gerald (verified owner) –
Had issues with opening and closing my hood installed these hood struts and problem solved I wish I would have put them in sooner great product highly recommend these
Eddie Holbrook (verified owner) –
Best decision on a part that I have added to my truck!!!
Mark Martin (verified owner) –
Great product
SONNY WARNER (verified owner) –
ANDREW J. (verified owner) –
Love them love the idea don’t like the fact they push hood forward and up gaps are gone
alvin robinson (verified owner) –
nice fabrication good materials should last a long time
John Hafner (verified owner) –
jason boatner (verified owner) –
Awesome kit! Got the basic stainless kit for a customers truck and it completely finished off the bay.
Jhye Hopkins (verified owner) –
Much better then stock and an easy install !
John White (verified owner) –
LYNN FOREMASTER (verified owner) –
Struts were a breeze to install. I installed them on a 2 ton hood. I was a little worried of the extra weight but they seem to work very well. Hope they last for a long time.
Michael C. (verified owner) –
Directions and install were straight-forward. The struts work great and are definitely and improvement over the old pool cue prop that I was using.
Wayne Bobb (verified owner) –
Very high quality and easy to install.
Anonymous (verified owner) –
Fast shipping, looks nice
Dennis B. (verified owner) –
Product looks great
LYNN K. (verified owner) –
Kevin O. (verified owner) –
Nicely made and finished product. Super quick international delivery Thanks!
John B. (verified owner) –
James (verified owner) –
CHRIS BYERS (verified owner) –
Great Products
Mike Anderson (verified owner) –
Hood Strut Kit – 48 / Chevy Truck looks super clean and smooth @483100chevy
Kenneth (verified owner) –
Great product! Fantastic service; honesty, shipping and technical were all great. Many struggle (As did I)with adjusting the hood properly, and unless the hood hinges are correctly adjusted, both springs and struts will likely leave you disappointed. Published information, and a healthy dose of patience worked for me. Many many attempts. Upon installing the new struts after correct hinge adjustment, the hood lifts quietly and slowly on its own without any help. 100% satisfied, and cannot he happier with the patient guidance from LS Fab.
admin –
Thanks for the kind words, Liam! We Appreciate the support!
Liam Black (verified owner) –
Received mine today 5 day to get to Oz fantastic. The fit took only 20 minutes and as per the instructions it all fits perfectly. No need for the old broom handle. I trust and recommend LS Fab.
Barry Whalen (verified owner) –
Jill (verified owner) –
Took awhile on shipping , but Great product
Mark Neely (verified owner) –
LOVE the LS Fab hood struts on my ’53! They look great and look great! My hood fits better after installing them too. I tell everyone where I got ’em! Thank you!
Casey D. (verified owner) –
First class products from first class people. Always very helpful. I have bought dash, scissor hinges, actuators, and hood strut kit. Very happy with all products!
Steven M. (verified owner) –
Haven’t installed yet, but looks like a quality product
Gabriel Guzman (verified owner) –
Dana Devlin (verified owner) –
Nice parts!
Fred (verified owner) –
look great
Carter Clements (verified owner) –
Nice quality and ease of application
GARY M JONES (verified owner) –
Laura G. (verified owner) –
Milt P. (verified owner) –
Service was great. Parts are as described. Only problem the struts are to strong and push the hood ahead and out of alignment so unfortunately had to remove them.
Scott Kendig (verified owner) –
Spencer Jarrett (verified owner) –
I have not installed as yet as my truck is still in the build stage. I am very happy with the my hood strut kit.đź‘Ť
Robert Andrew (verified owner) –
As is always the case with your products, your hood struts are well engineered!
Anonymous (verified owner) –
Quality construction, good instructional video
Jere Nash (verified owner) –
Andrew (verified owner) –
John Ginn (verified owner) –
Parts look great
Leo B. (verified owner) –
Charley Reed (verified owner) –
I had a little trouble with the fitment wanting to raise the rear of the hood. I emailed them , within 15 minutes Kris responded with advice on how to correct the problem. I followed his advice, and it worked awesome. These guys make a quality product, and I would highly recommend them to anyone . thanks for the help guys.
johnny (verified owner) –
Great Price! Easy Install Well Made Fast shipping To U.S.A CA. Will Defiantly Buy Again.
John L. (verified owner) –
Great product !
Matthew Malloy (verified owner) –
I like the product but there was no paperwork included at all. No pack slip no sticker no qr code for instructions
Reegan O’keefe (verified owner) –
Awesome Product!
Gage Brown (verified owner) –
Jeff Gillies (verified owner) –
Very simple install, modernized the appearance under the hood and works perfectly. I would purchase this kit for my next build. Thanks to the boys at LS ,great product…
Terry P. (verified owner) –
We’ll made and look amazing. Shipping took a bit longer than expected!
Trevor (verified owner) –
Walter Malley (verified owner) –
Look great, haven’t installed yet
Phil M. (verified owner) –
Hi, I did have an issue with the brackets, but Kris was quick to respond, and get replacements out. Now installed I couldn’t be happier! I am getting asked where to get them at most of our local car meets. Cheers Phil
RAFAEL P. (verified owner) –
This item works great, not need to spends Hundreds of dollars when this struts handle the weight and open my 55 First Edition hood rapidly. Thank You for all the hard work you placed on this parts..
Michael Sehorn (verified owner) –
David (verified owner) –
Doug Gilchrist (verified owner) –
Pricey
Kris Hauser (verified owner) –
Joseph, Sorry to hear that. As noted in the description, that can happen on some trucks and we noted that the hood may need to be aligned in the description on the product listing. If you want to reach out and give us a call or email us, we can help walk you through how to align the hood.
Joseph Hutchinson (verified owner) –
Love the product however, it changed me hood alignment to an unacceptable gap. I have removed the cylinders & probably won’t be using them. Very disappointed that I wasted $165.
Ronald M. (verified owner) –
Just installed on my 1954 chevy pickup, worked out great only had to adjust my hinges a little to make the hood close properly.
Jean-François (verified owner) –
Great product instruction are very clear. Goes on easy and fast . Quality is top notch!!
Thanks again
Pat Jobin –
I love the struts it’s easy install in an hour or less .
J’aime les struts installation en moin d’une heure.
Isaac Sharon (verified owner) –
5 stars , as a weekend mechanic the installation of these hood struts was a easy and well needed upgrade. I would say it took less then a hour from beginning to end. The struts even realigned my hood for a better gap. The quality of al the parts was very high, for the very low price compared to other brands. The video was easy to follow and made for a great guide to complete the installation. I would recommend this product and by it again with out hesitation. LS Fab is the real deal
Wayne Johnson (verified owner) –
Easy peasy install and my hood fits better than old stock springs
Kris Hauser –
Thank you again for your support. Glad you are happy with the product!
Jim Masi –
Great product. Extremely easy install, great instructions and hood fit was great. Highly recommend, great product for the price.
Cody Hammer (verified owner) –
5 stars here in Texas. Price is great compared to other kits. Quality is great. Installation was pretty simple. Only thing, and it’s nothing to do with the kit, I called LS for advice. If your hinge is worn out you’ll have some trouble with the rear of the hood. But that was simple enough as well
Clay herron (verified owner) –
5 stars from me. Easy install, quality parts, and works like it should. Even solved some of my hood alignment issues caused by the old springs.
