Inside Box Panel Fuel Filler – 67-87 GMC Chevy Truck

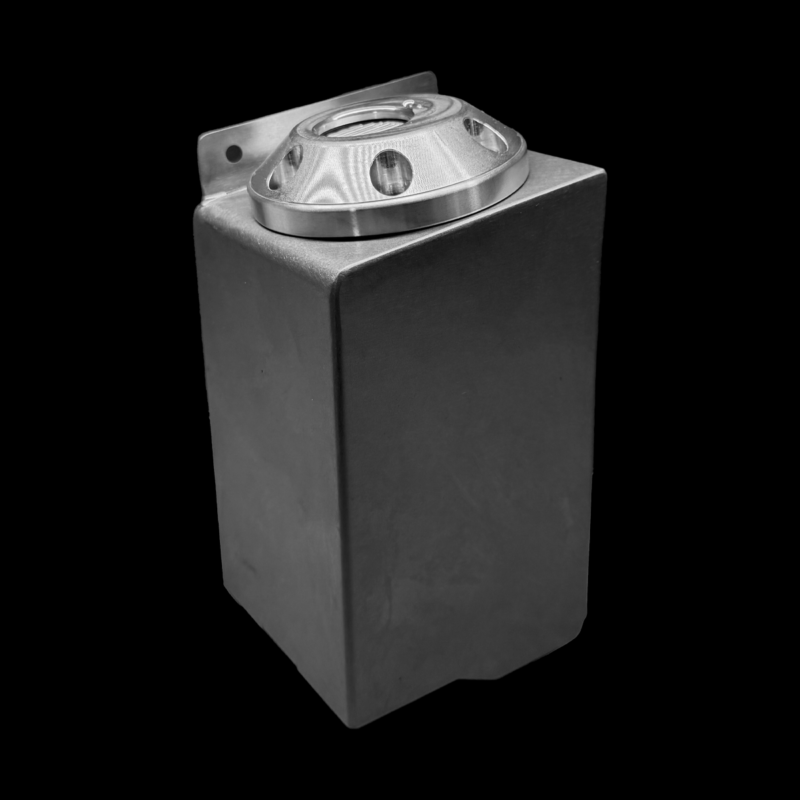

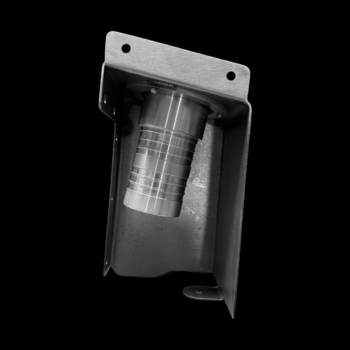

This inside box panel fuel filler is an affordable, convenient location rather than flush in the middle of the bed floor. It comes in raw 18-gauge, pre-formed and tacked-together mild steel, in case slight modifications are needed to fit your particular application. It can be welded or screwed in with the supplied hardware.

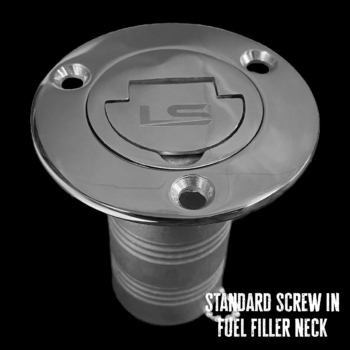

Our popular stainless filler neck is included. It's made of 316 stainless steel with a polished face and a laser-engraved LS logo. It mounts with a flange with 3 tapered mounting holes and a flip-up cap for keyless opening and closing. The filler comes complete with a stainless steel retaining chain to avoid losing the cap, and stainless steel mounting hardware is included.
Fuel Filler Dimensions:
- ✅ Flange diameter 2-15/16"
- ✅ Neck diameter 1-1/2"
- ✅ Neck length 2 1/4"
A universal fill tube is required to join the neck with your particular tank. A side fill tank is recommended, and can be sourced from a local parts store, 1.5" diameter.
Additional information
| Weight | 0.8 kg |
|---|---|
| Brand | |
| Interior / Exterior | |
| Material | |
| Truck Make | |
| Truck Model | Blazer, C10, C1500, C20, C30, Jimmy, K10, K20, K30, K5, Sierra, Silverado, Suburban |
| Truck Year | 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987 |

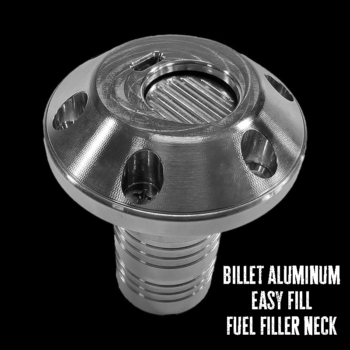

| Fuel Filler Neck | Standard, Billet Easy Fill |
| Type | Not Pre-Welded, Fully Pre-Welded |
19 reviews for Inside Box Panel Fuel Filler – 67-87 GMC Chevy Truck
People also liked…
Here are some other popular Classic Truck Parts for your custom build!
Related products
-
Classic Truck Cup Holder – 67-72 GMC Chevy Truck
$83.99$71.50 Select options This product has multiple variants. The options may be chosen on the product page -
Universal Hub Cap Clips
Original price was: $125.99.$104.95Current price is: $104.95. Add to cart -
Front Bed Panel – OE Style (Steel Floor) – 67-72 Chevy GMC C/K Fleetside Pickup
$287.99 Add to cart
NICK MUNROE (verified owner) –
ROGER R. (verified owner) –
Mike Velazco (verified owner) –
Great product fits good.
Norman Stewart (verified owner) –
Chris Jilge (verified owner) –
easy to purchase from, shipped quick and the fuel filler is great quality
Dennis (verified owner) –
Anonymous (verified owner) –
Mike Ackley (verified owner) –
Nice clean filler freestyle up the bed
Zack A. (verified owner) –
The fuel filler is good quality and nicely welded. Being designed to cover a wide range of years, it did not perfectly fit the bed of the 1969 c10 though. With a little modification it looks good and fits well.
David Putnam (verified owner) –
Tyler B. (verified owner) –
All the work looks great. I haven’t installed it yet, but I think it’ll be fine.
Dennis Yokley (verified owner) –
Rick Evans (verified owner) –
Paul (verified owner) –
An affordable way to fill the rear mount tank. A little fabrication involved. I used 3 nutserts into the bed and post to attached with bolts, so it can be easily removed if needed. I drilled 2 holes to be able to access 2 of bolts and gain access to the hose clamp, the third mount I was able to get to thru the top opening. Will cover the holes with flush plugs and this will be coated in bed liner paint as the rest of the bed will be, should blend in and be out of the way. but overall, pleased with how it turned out.
John R. (verified owner) –
Very nicely made however . Design could be revamped as it’s very difficult to get a hose clamp on inside the housing.
John (verified owner) –
Very great group to work with. They only offered the in box fuel filler for the left side and I called and they made the part for the right side for me custom. Awesome parts guys
Mike Hinkley (verified owner) –
Great fit and small enough to be discreet. Would recommend to use stainless or chrome moly so the tube and be extended.
CORY W. (verified owner) –
Jay K. (verified owner) –
Great product
