Install Steps
- Cut the template. With scissors, cut the outer ring out of the paper template.
- Mark hole centers. Lightly place the template in the center of the rim and mark the center point of the 6 holes.
- Verify spacing. Measure across to confirm the holes are spaced 9″ apart and that the template hasn’t been pushed in too far or shifted.
- Drill and tap. Drill the holes with the provided drill bit and carefully tap them with the provided tap. The tap will break if too much force is applied.
- Attach the cap clips with the provided hardware.
- Modify clips if needed. Slight modification of the clips may or may not be required depending on the style of 10.5″ cap.

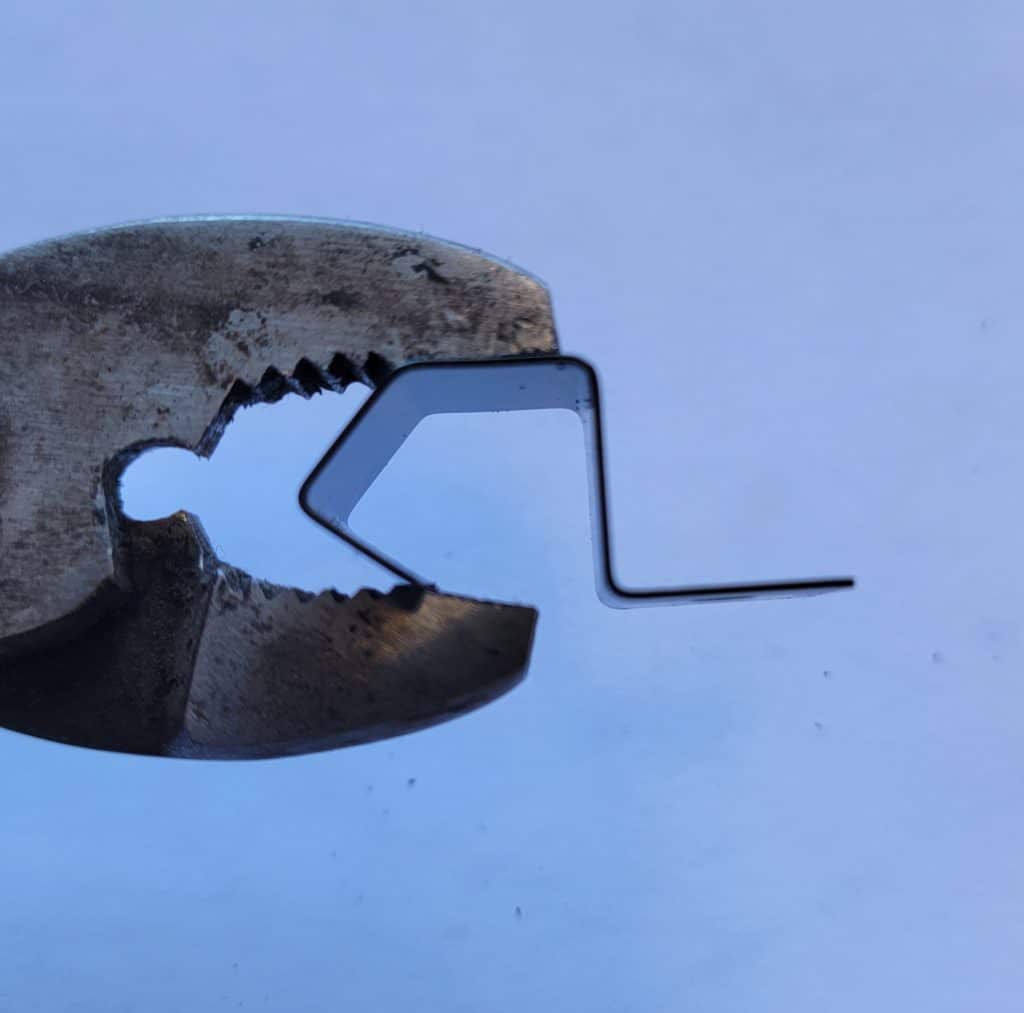

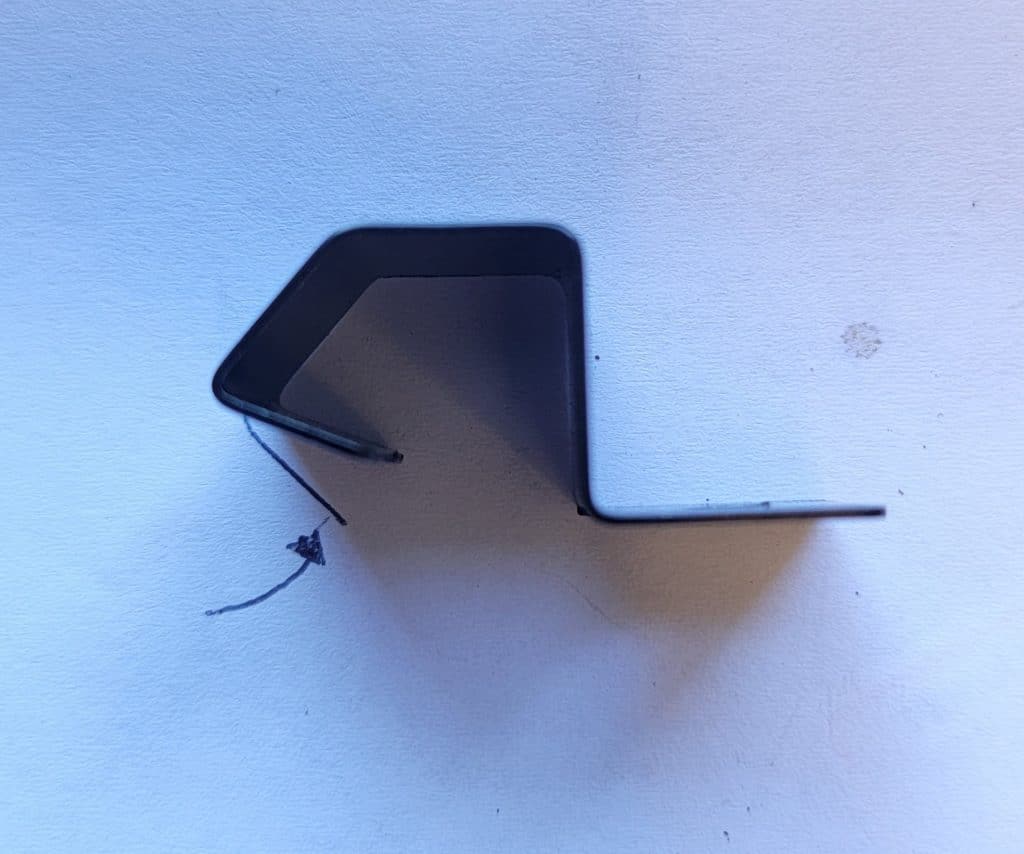

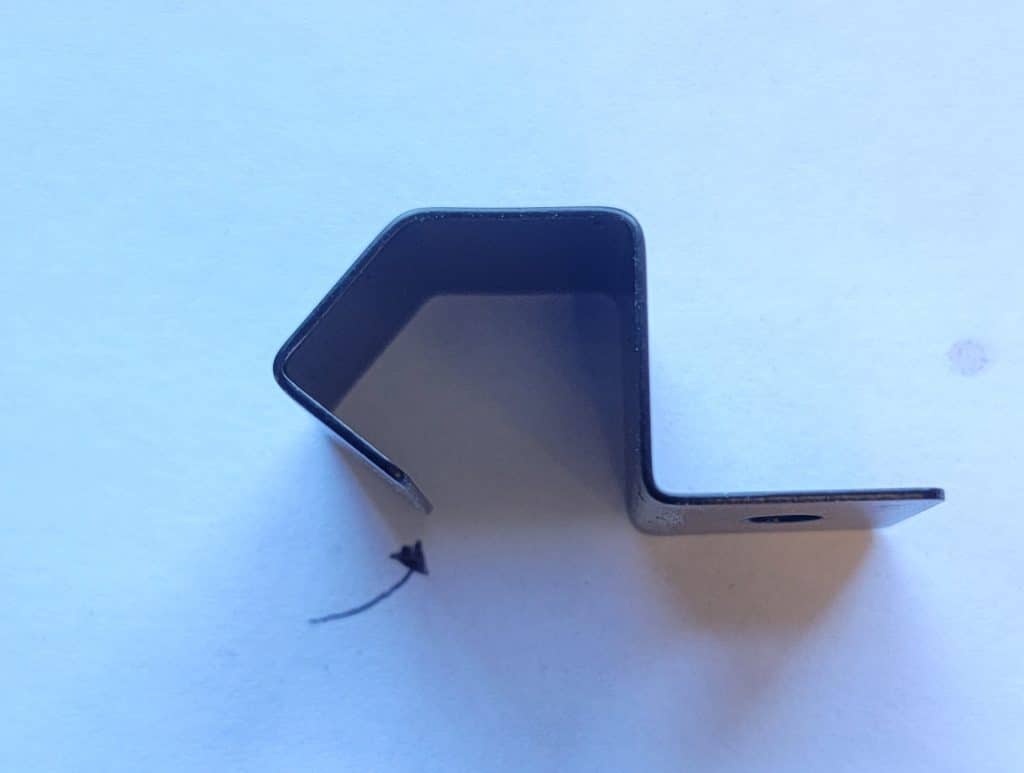

- Bend the spring steel. Use a flat-nose pair of pliers to bend the spring steel to accept your caps. Depending on the inside lip style of your caps, this modification can reduce the chance of caps coming off while driving or being pried off.
Tips
- Test fit your caps with the wheels off the vehicle.
- Do any drilling, tapping, installing, or modification on uncoated wheels. Rims can be coated once all steps are complete.
- If your wheels are already coated, mask them up while you work to protect the finish — accidents can happen.
- Feel free to reach out to our personal number if you have any questions about the installation of your cap clips: (780) 678-9469.
For any questions or concerns with your install, don’t hesitate to email us at info@lsfab.com
Printable instructions
The illustrated version of this guide, ready to print for the shop.
