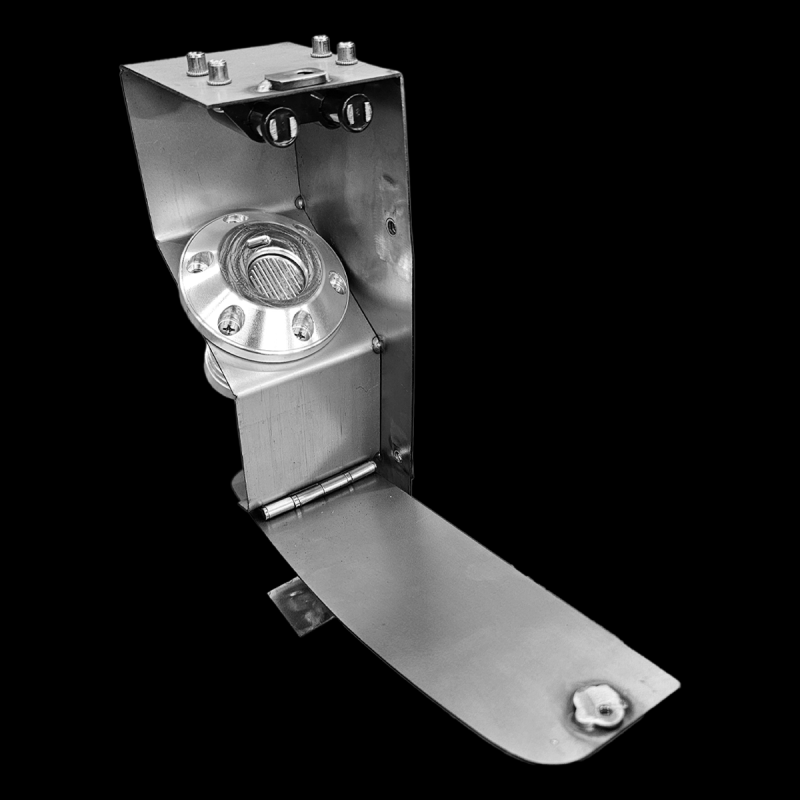

Hidden Taillight Fuel Filler Kit – 1967-1972 Ford Truck (1966-1977 Ford Bronco) | No Weld Bolt-In

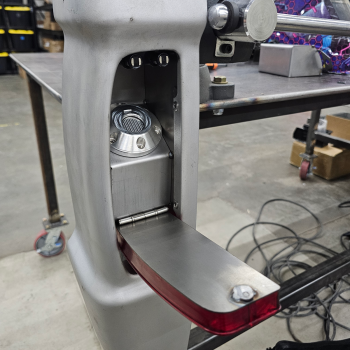

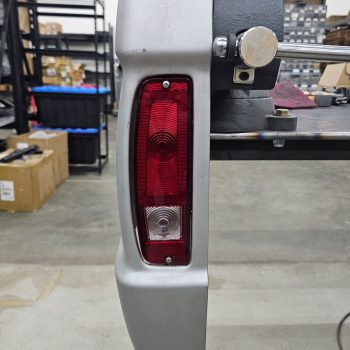

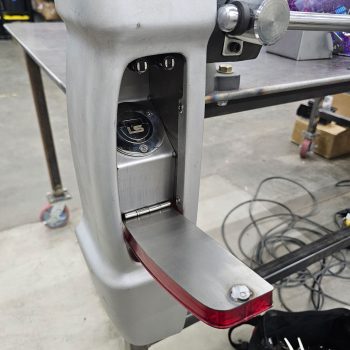

This hidden fuel filler kit relocates your gas cap into the taillight housing for 1967-1972 Ford trucks and 1966-1977 Ford Broncos — a clean, hidden alternative to a bed-floor filler.
Features:
- ✅ No welding required — a bolt-in solution
- ✅ CNC laser cut 18-gauge steel
- ✅ Pre-formed and spot-welded assembly
- ✅ High-polished 1.5" stainless steel LS-engraved fuel filler
- ✅ Soft roller bearing stainless steel taillight hinge
- ✅ Laser cut taillight mounting holes
- ✅ Stainless steel hardware
This product requires flat-back LED taillights.
Note: this kit may not work with fuel nozzles that have a vapor-sealing or pressure-seal device, as required in some states. Off-road use only.
Installation:
Important Installation Notice:
LS Fabrication doesn't currently offer a hose or plumbing kit connecting the filler to the fuel tank — all plumbing design, routing, and installation are the installer's responsibility. Maintain maximum downward slope from the filler neck to the fuel tank.
Venting Notice: this kit doesn't provide tank venting. Your fuel tank needs its own adequate vent system to prevent slow filling, splash-back, or pump shutoff issues.
Additional information
| Weight | 1.4 kg |
|---|---|
| Truck Year | |
| Truck Make | |
| Truck Model | |
| Product Types | Fuel System Components, Tailgate Accessories, Truck Bed Parts, Sheet Metal Panels |
| Brand | |
| Side | Driver Side, Passenger Side |
| Bucket Type | Pre-Welded Bucket, Standard Bucket |
| Add Reverse Lights | Add Reverse Lights (2), No Reverse Lights |
| Fuel Filler Neck | Standard Screw On Neck (Included), Billet Easy Fill Neck |
| Add Gas Filler Delete | Add Gas Filler Delete, No Gas Filler Delete |
| Taillights (Required) | Red, Smoked, No Taillights (You have a set of flat back LED taillights) |
